3199 Solid Carbide Ball-Nose End Mill

3199 Solid Carbide Ball-Nose End Mill

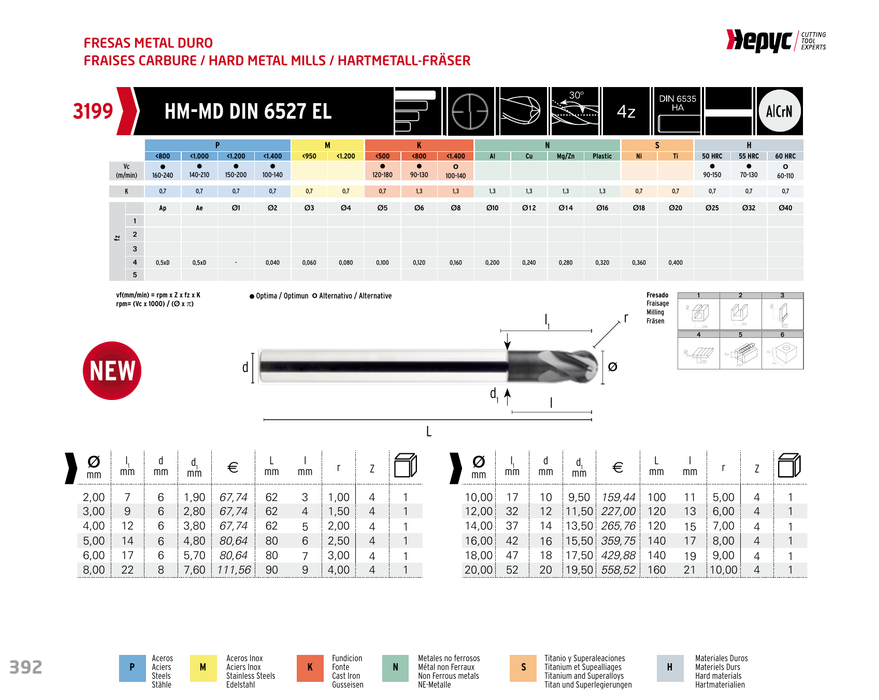

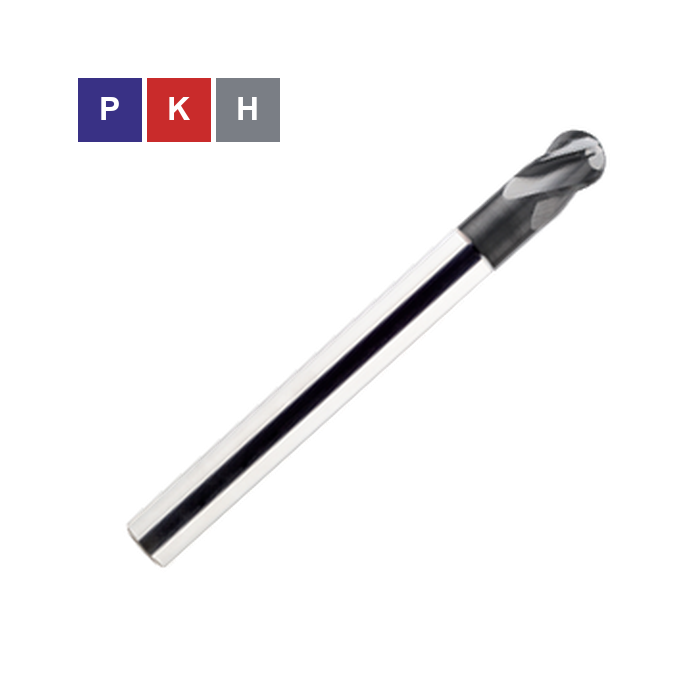

Ball-nose end mill from HEPYC series 3199. Tool material: Carbide (HM-MD). Standard / manufacturer designation: DIN 6527 EL.

Key Features:

• Tool material: Carbide (HM-MD)
• Standard / manufacturer designation: DIN 6527 EL
• Number of flutes Z: 4Z
• Geometry / design: N
• Helix angle: 30°
• Coating / treatment: AlCRN
• Cutting edge: R

Recommended Materials:

P Steels

• Steels <800 N/mm² – Optimal suitability
• Steels <1,000 N/mm² – Optimal suitability
• Steels <1,200 N/mm² – Optimal suitability
• Steels <1,400 N/mm² – Optimal suitability

K Cast iron

• Cast iron <500 N/mm² – Optimal suitability
• Cast iron <800 N/mm² – Optimal suitability
• Cast iron <1,400 N/mm² – Alternative suitability

H Hard materials

• 50 HRC – Optimal suitability
• 55 HRC – Optimal suitability
• 60 HRC – Alternative suitability
