3184 Solid Carbide Chamfer Mill 4FL

3184 Solid Carbide Chamfer Mill 4FL

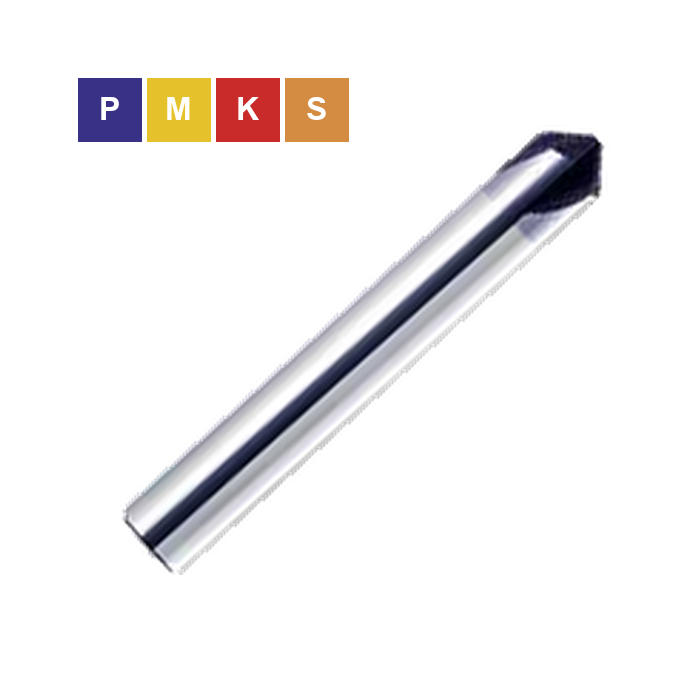

90° chamfer mill from HEPYC series 3184. Tool material: Carbide (HM).

Key Features:

• Tool material: Carbide (HM)
• Number of flutes Z: 4
• Geometry / design: 90°
• Helix angle: 0°
• Coating / treatment: TIALN
• Cutting edge: 45°

Recommended Materials:

P Steels

• Steels <800 N/mm² – Optimal suitability
• Steels <1,000 N/mm² – Optimal suitability
• Steels <1,200 N/mm² – Optimal suitability
• Steels <1,400 N/mm² – Optimal suitability

M Stainless steels

• Stainless steels <950 N/mm² – Optimal suitability
• Stainless steels <1,200 N/mm² – Optimal suitability

K Cast iron

• Cast iron <500 N/mm² – Optimal suitability
• Cast iron <800 N/mm² – Optimal suitability
• Cast iron <1,400 N/mm² – Alternative suitability

N Non-ferrous materials

• Copper and copper alloys (Cu) – Alternative suitability

S Titanium and heat-resistant alloys

• Nickel alloys (Ni) – Optimal suitability
• Titanium (Ti) – Optimal suitability
