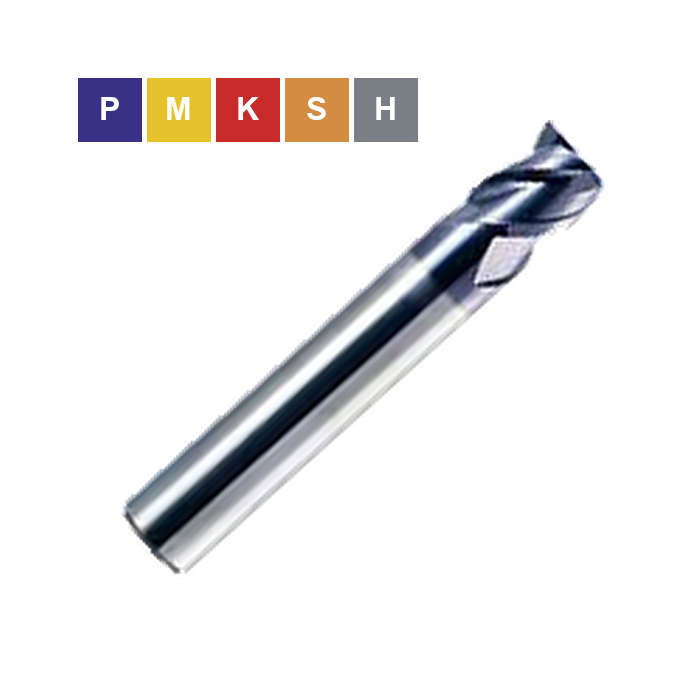

3173 Solid Carbide Square-End End Mill

3173 Solid Carbide Square-End End Mill

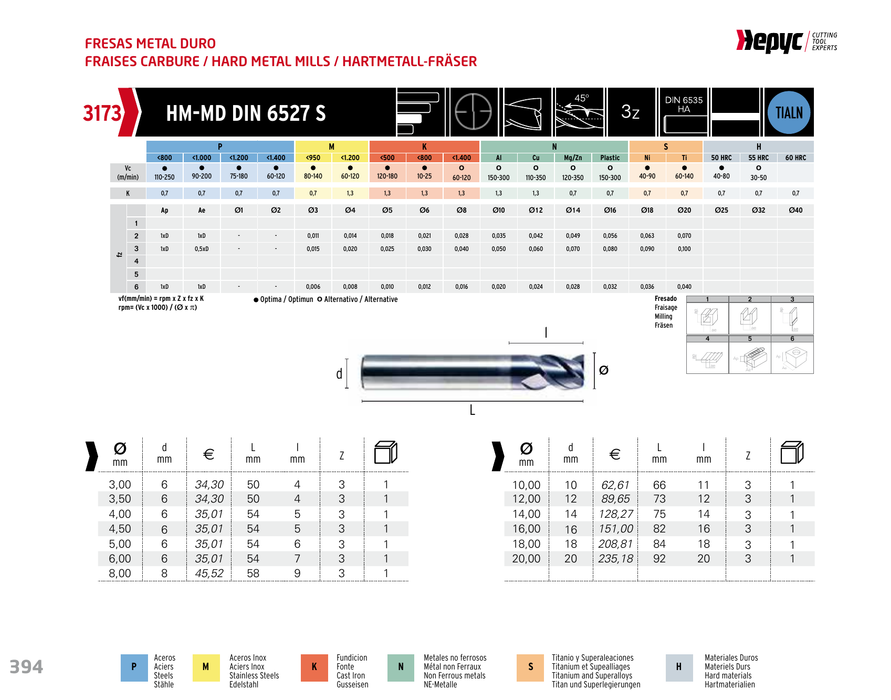

Square-end end mill from HEPYC series 3173. Tool material: Carbide (HM). Standard / manufacturer designation: DIN 6527 S.

Key Features:

• Tool material: Carbide (HM)
• Standard / manufacturer designation: DIN 6527 S
• Number of flutes Z: 3Z
• Geometry / design: W
• Helix angle: 45°
• Coating / treatment: TIALN

Recommended Materials:

P Steels

• Steels <800 N/mm² – Optimal suitability
• Steels <1,000 N/mm² – Optimal suitability
• Steels <1,200 N/mm² – Optimal suitability
• Steels <1,400 N/mm² – Optimal suitability

M Stainless steels

• Stainless steels <950 N/mm² – Optimal suitability
• Stainless steels <1,200 N/mm² – Optimal suitability

K Cast iron

• Cast iron <500 N/mm² – Optimal suitability
• Cast iron <800 N/mm² – Optimal suitability
• Cast iron <1,400 N/mm² – Alternative suitability

N Non-ferrous materials

• Aluminum (Al) – Alternative suitability
• Copper and copper alloys (Cu) – Alternative suitability
• Magnesium / zinc (Mg/Zn) – Alternative suitability
• Plastics – Alternative suitability

S Titanium and heat-resistant alloys

• Nickel alloys (Ni) – Optimal suitability
• Titanium (Ti) – Optimal suitability

H Hard materials

• 50 HRC – Optimal suitability
• 55 HRC – Alternative suitability
