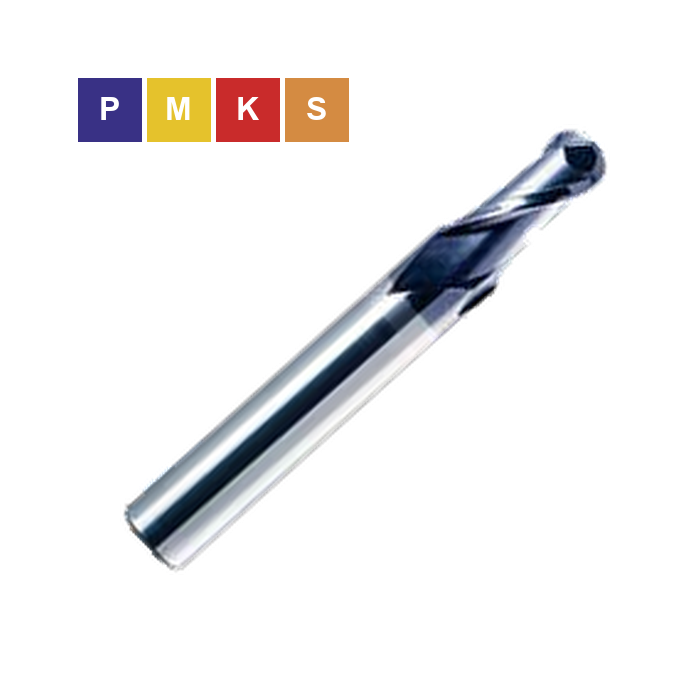

3170 Solid Carbide Ball-Nose End Mill

3170 Solid Carbide Ball-Nose End Mill

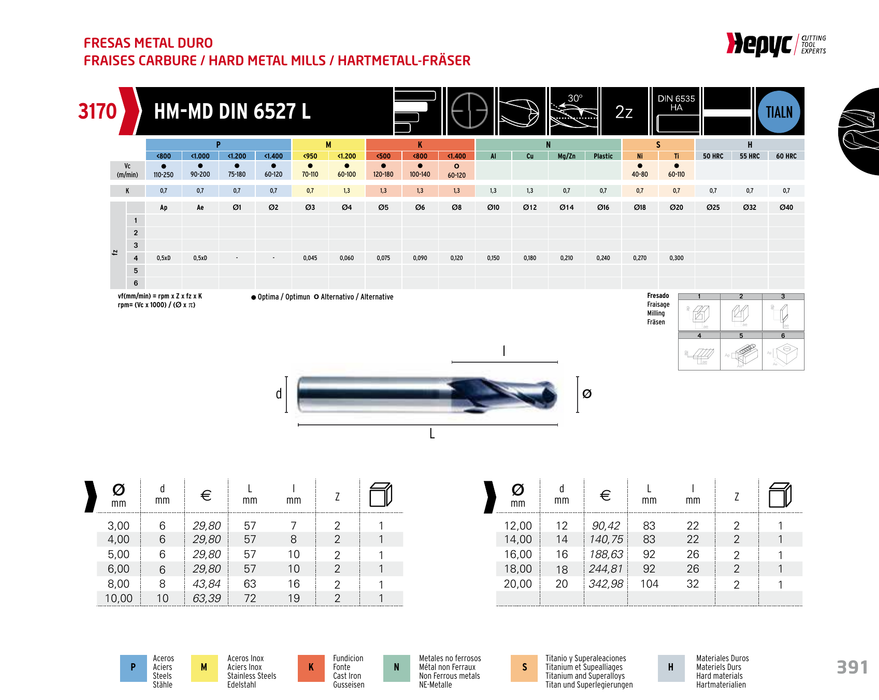

Ball-nose end mill from HEPYC series 3170. Tool material: Carbide (HM). Standard / manufacturer designation: DIN 6527 L.

Key Features:

• Tool material: Carbide (HM)
• Standard / manufacturer designation: DIN 6527 L
• Number of flutes Z: 2Z
• Geometry / design: N
• Helix angle: 30°
• Coating / treatment: TIALN
• Cutting edge: R

Recommended Materials:

P Steels

• Steels <800 N/mm² – Optimal suitability
• Steels <1,000 N/mm² – Optimal suitability
• Steels <1,200 N/mm² – Optimal suitability
• Steels <1,400 N/mm² – Optimal suitability

M Stainless steels

• Stainless steels <950 N/mm² – Optimal suitability
• Stainless steels <1,200 N/mm² – Optimal suitability

K Cast iron

• Cast iron <500 N/mm² – Optimal suitability
• Cast iron <800 N/mm² – Optimal suitability
• Cast iron <1,400 N/mm² – Alternative suitability

S Titanium and heat-resistant alloys

• Nickel alloys (Ni) – Optimal suitability
• Titanium (Ti) – Optimal suitability
