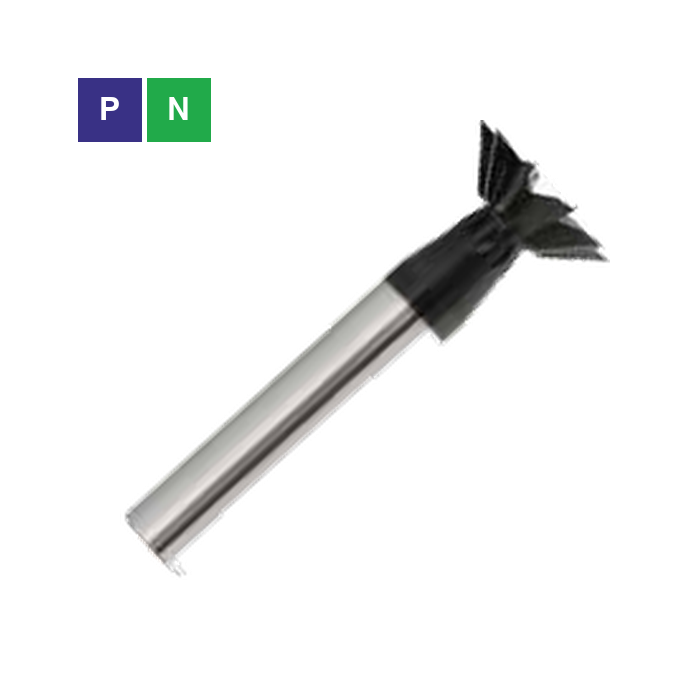

3155 HSSE Dovetail Cutter

3155 HSSE Dovetail Cutter

Dovetail cutter from HEPYC series 3155. Tool material: High-speed steel (HSSE). Standard / manufacturer designation: DIN 1833 A.

Key Features:

• Tool material: High-speed steel (HSSE)
• Standard / manufacturer designation: DIN 1833 A
• Number of flutes Z: 8-12
• Helix angle: 0°
• 45° or 60° versions

Recommended Materials:

P Steels

• Steels <800 N/mm² – Optimal suitability
• Steels <1,000 N/mm² – Optimal suitability

K Cast iron

• Cast iron <800 N/mm² – Alternative suitability

N Non-ferrous materials

• Aluminum (Al) – Alternative suitability
• Copper and copper alloys (Cu) – Optimal suitability
• Magnesium / zinc (Mg/Zn) – Alternative suitability
