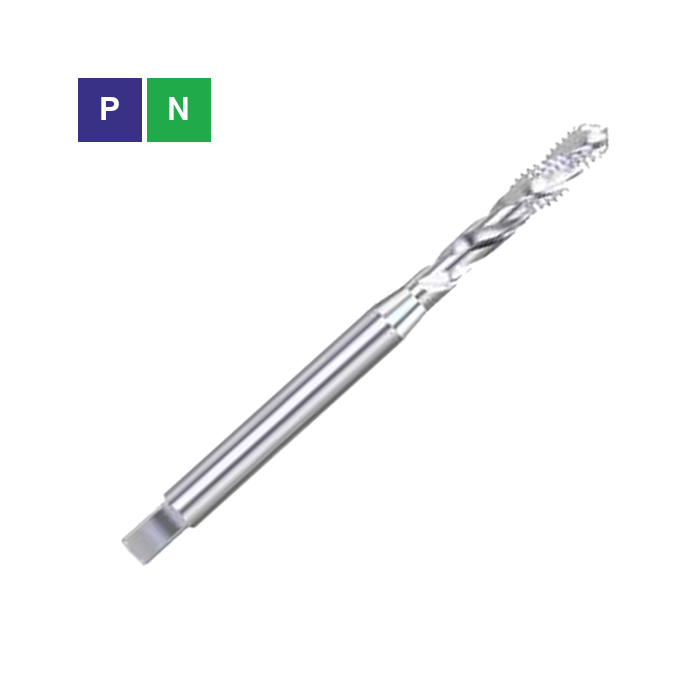

2409 HSSE M-MF Spiral Flute Tap

2409 HSSE M-MF Spiral Flute Tap

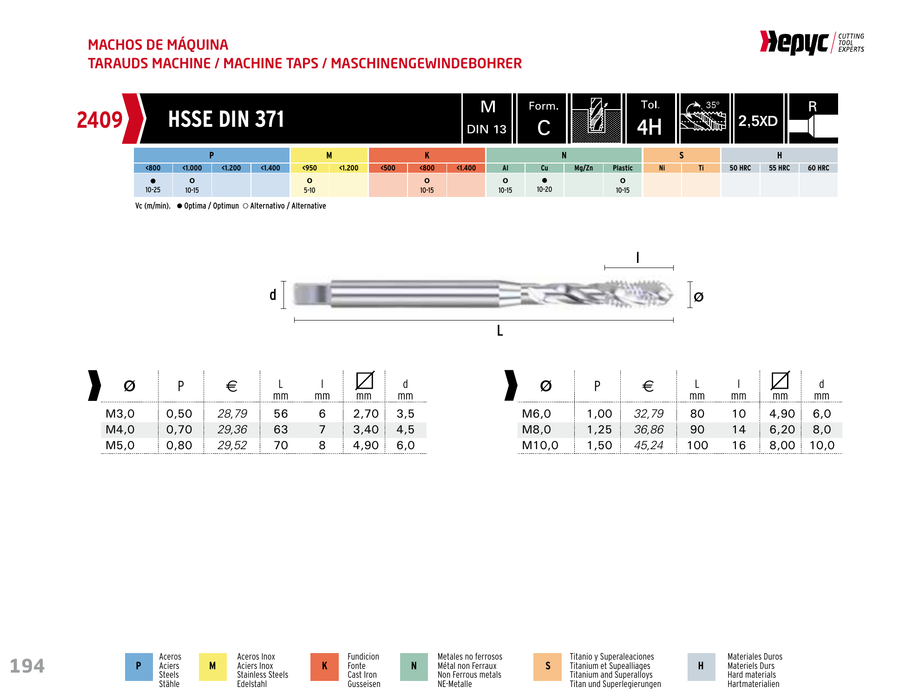

Machine tap HSSE 2,5xD from HEPYC series 2409. Tool material: High-speed steel (HSSE). Standard / manufacturer designation: DIN 371. Thread type: M-MF. Working depth: 2,5xD.

Key Features:

• Tool material: High-speed steel (HSSE)
• Standard / manufacturer designation: DIN 371
• Thread type: M-MF
• Chamfer form: C(2-3)
• Geometry / design: R35°
• Tolerance / class: 4H
• Working depth: 2,5xD

Recommended Materials:

P Steels

• Steels <800 N/mm² – Optimal suitability
• Steels <1,000 N/mm² – Alternative suitability

M Stainless steels

• Stainless steels <950 N/mm² – Alternative suitability

K Cast iron

• Cast iron <800 N/mm² – Alternative suitability

N Non-ferrous materials

• Aluminum (Al) – Alternative suitability
• Copper and copper alloys (Cu) – Optimal suitability
• Plastics – Alternative suitability
