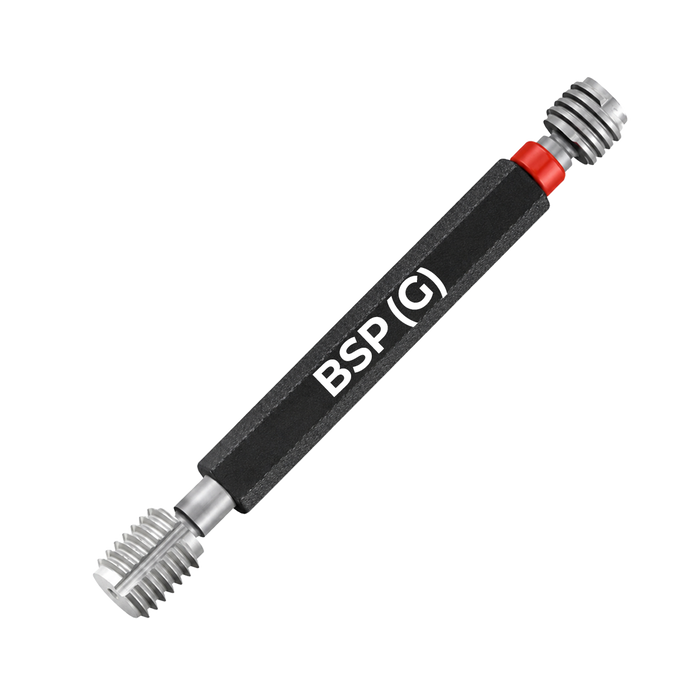

BSP (G) Thread Plug Gauge GO / NO-GO (G 1/16"-28 – G 2"-11)
BSP (G) Thread Plug Gauge GO / NO-GO Class 6B (G 1/16"-28 – G 2"-11)
The BSP (G) Thread Plug Gauge GO / NO-GO is designed for fast and reliable inspection of internal BSPP (G) parallel pipe threads. The gauge provides a simple and accurate method for verifying that manufactured internal threads meet the required dimensional limits.
Each gauge features separate GO and NO-GO checking ends, allowing efficient inspection of threaded components in production, machining, and quality control environments.
Key Features
- GO / NO-GO thread plug gauge
- For checking internal BSPP (G) parallel pipe threads
- 55° Whitworth thread profile
- Manufactured for inspection of ISO 228 BSPP (G) threads
- Right-hand thread
- Size range: G 1/16"-28 to G 2"-11
- Quick and reliable thread inspection
- Suitable for production and quality control applications
- Thread standard: ISO 228
Certification
Most gauges are supplied with a manufacturer’s inspection certificate. An accredited laboratory calibration certificate is available upon request at an additional cost.
Applications
- Inspection of internal threaded components
- Inspection of BSPP (G) parallel pipe threads
- CNC machining quality control
- Production line inspection
- Incoming and final inspection
