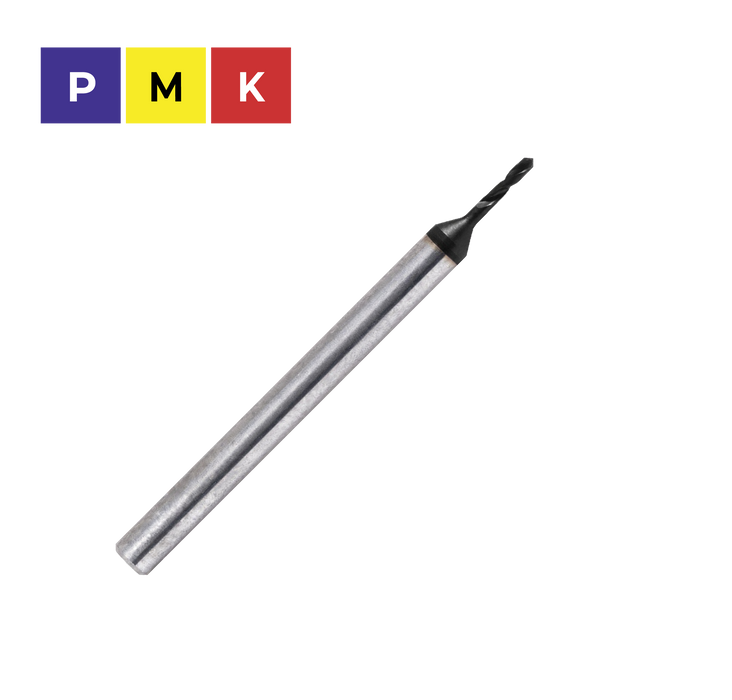

Solid Carbide Drill DIN 6542 – Series 11990 (0.2mm - 2.9mm)

The HEPYC 11990 series features solid carbide (HM) drills manufactured to DIN 6542 standards, designed for precision drilling in small-diameter applications and demanding machining operations. The 140° point geometry provides accurate centering and stable cutting performance, while the 30° helix ensures efficient chip evacuation and smooth drilling.

Manufactured from integral solid carbide (HM) and featuring a TiAlN coating, these micro drills offer excellent wear resistance, high thermal stability, and dimensional stability. With a 3×D drilling depth, the 11990 series is particularly suitable for precision drilling in carbon and alloyed steels, including hardened steels up to 60 HRC.

Key Features

  • Solid carbide (HM)

  • DIN 6542 standard

  • 3×D drilling depth

  • 140° point angle

  • 30° helix

  • Cylindrical shank

  • TiAlN coating

  • Micro-drilling geometry

  • Excellent centering and dimensional accuracy

  • High wear and heat resistance

  • High rigidity and stability

  • Long tool life

Recommended Materials

🟦 P – Steel (Optimal)

  • Non-alloyed carbon steels

  • Alloyed carbon steels

  • Steels up to 60 HRC

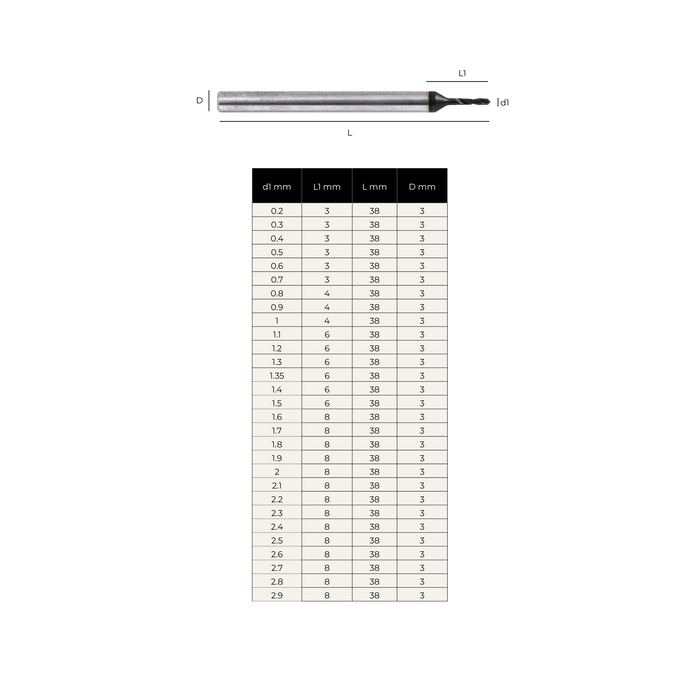

Available Dimensions

  • Diameter: 0.20 – 2.90 mm

  • Drilling depth: 3×D

  • Point angle: 140°

  • Helix angle: 30°

  • Standard: DIN 6542

  • Coating: TiAlN
