3161 HSSE Side-And-Face Milling Cutter

3161 HSSE Side-And-Face Milling Cutter

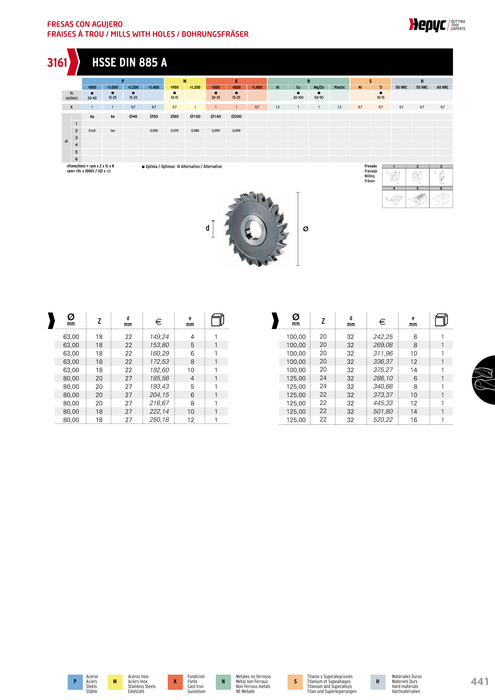

Side-and-face milling cutter from HEPYC series 3161. Tool material: High-speed steel (HSSE). Standard / manufacturer designation: DIN 885 A.

Key Features:

• Tool material: High-speed steel (HSSE)
• Standard / manufacturer designation: DIN 885 A
• Number of flutes Z: 18-24
• Geometry / design: H
• Helix angle: 10°
• Straight teeth

Recommended Materials:

P Steels

• Steels <800 N/mm² – Optimal suitability
• Steels <1,000 N/mm² – Optimal suitability
• Steels <1,200 N/mm² – Optimal suitability

M Stainless steels

• Stainless steels <950 N/mm² – Optimal suitability

K Cast iron

• Cast iron <500 N/mm² – Optimal suitability
• Cast iron <800 N/mm² – Optimal suitability

N Non-ferrous materials

• Copper and copper alloys (Cu) – Optimal suitability
• Magnesium / zinc (Mg/Zn) – Optimal suitability

S Titanium and heat-resistant alloys

• Titanium (Ti) – Optimal suitability
