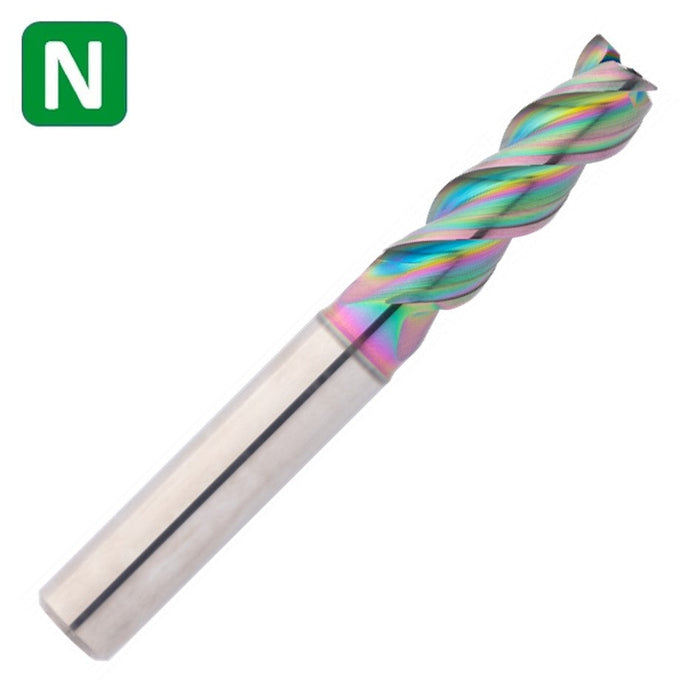

Solid Carbide End Mill 8mm 8C0.2x26-30x70xD8
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 8mm
D3 (Undercut diameter): 7.5mm
L2 ( Length of cut): 26mm
L3 (Length of undercut): 30mm
L1 (Total length): 70mm
D2 (Shank diameter): 8mm
Z (Number of cutting edges): 3
45DEG Corner chamfer: 0.2mm
Helical pitch: 45
-
Defined clearance angle for ideal stabilization with high cutting depths
-
Special helical pitch for smooth running and soft cut
-
Extra large chip chambers for an extreme chip volume
-
For process reliable, helical diving and immersion
-
For roughing and finishing
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: h6
Coating: AlphaSlide Rainbow
Strategy: Extended Trochoidal Cutting, High Performance Cutting
Applications: Trimming, Full Slot, X, Y, Helical
Features: Unequal Tooth Pitch, 3xD, Center Cutting, Corner Bevel
item code: 142003
