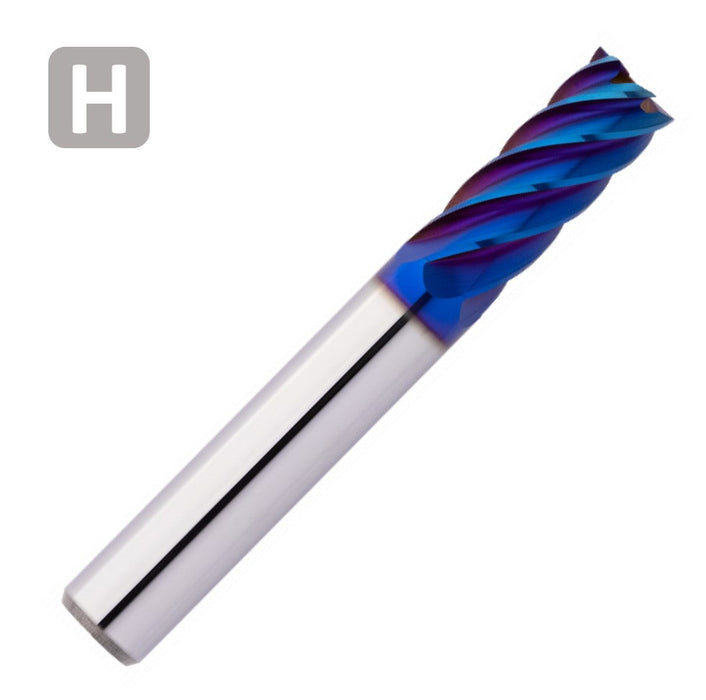

Solid Carbide End Mill 8mm 8x22x70xD8

Solid Carbide End Mill 8mm 8x22x70xD8

$44.59 - $44.59
$44.59
$44.59 - $44.59
$44.59




D1 (Cutting diameter): 8mm
L2 ( Length of cut): 22mm
L1 (Total length): 70mm
D2 (Shank diameter): 8mm
Z (Number of cutting edges): 6
Helical pitch: 45






  • Ultrafine carbide grade specially developed for machining hardened steels
  • Adapted rake angle for safe milling up to 70 HRC
  • Defined cutting edge preparation for homogeneous wear
  • Reduce the axial depth of cutting with increasing hardness
  • For roughing and finishing

 * MADE IN GERMANY *







Cooling: air-cooled, dry

Tolerance: e8

Coating: AlphaDura Navy

Strategy: Extended Trochoidal Cutting, High Performance Cutting

Applications: Trimming, X, Helical

Features:  Dynamic Helical Pitch, Center Cutting, Sharp-Edged

item code: 141006
