Solid Carbide End Mill 8mm 8x22-27x70xD8

Solid Carbide End Mill 8mm 8x22-27x70xD8

$51.89 - $51.89
$51.89
$51.89 - $51.89
$51.89

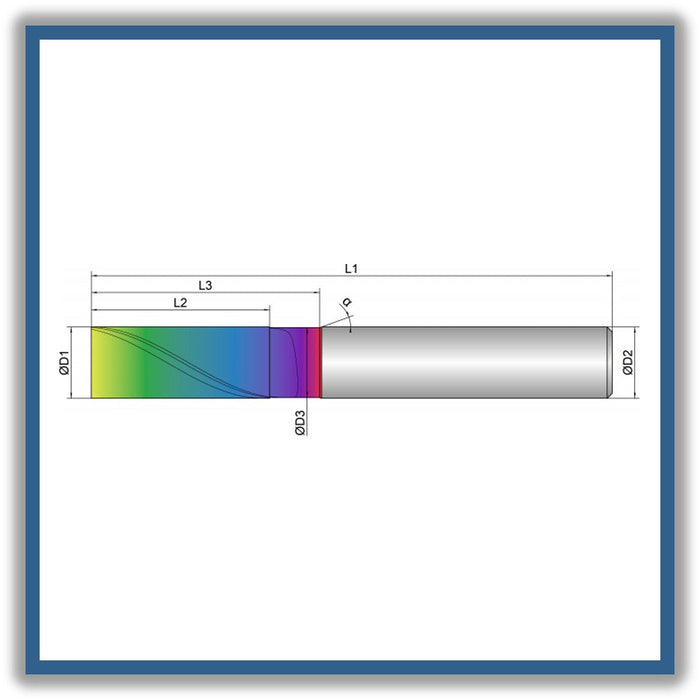

D1 (Cutting diameter): 8mm
D3 (Undercut diameter): 7.8mm
L2 ( Length of cut): 22mm
L3 (Length of undercut): 27mm
L1 (Total length): 70mm
D2 (Shank diameter): 8mm
Z (Number of cutting edges): 2
Helical pitch: 20



  • Extra sharp cutting edges for a smooth and soft cut in all plastics
  • Highly polished chip space for optimized chip evacuation
  • Special helical pitch for smooth running
  • Suitability for Roughing & Finishing
 * MADE IN GERMANY *

Cooling: water min, water max

Tolerance: e8

Coating: AlphaSlide Rainbow

Strategy: Extended Trochoidal Cutting, High Performance cutting

Applications: Trimming, Full slot, X,Y,Z

Features: Center Cutting, Sharp edged

item code: 102007
