Solid Carbide End Mill 8mm 8R4x18-54x100xD8

Solid Carbide End Mill 8mm 8R4x18-54x100xD8

$89.19 - $89.19
$89.19
$89.19 - $89.19
$89.19

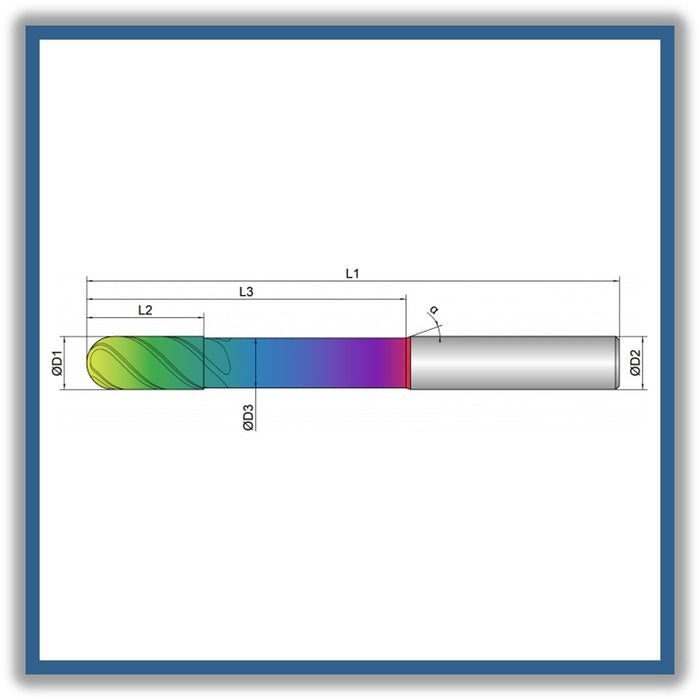

D1 (Cutting diameter): 8mm
D3 (Undercut diameter):7.5mm
L2 ( Length of cut):18mm
L3 (Length of undercut):54mm
L1 (Total length):100mm
D2 (Shank diameter):8mm
Z (Number of cutting edges): 4
R Corner radius: 4mm
Helical pitch: 45



  • Four cutting edges to the center for the best dimensional accuracy at high material removal rates
  • Defined microbevel and optimized face geometry for excellent surface quality
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
  • Long version for deeper cavities
  • For use in HSC milling
  • For roughing and finishing
 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: h6

Coating: AlphaSlide Rainbow

Strategy:  High Speed Cutting

Applications: Engraving, Multipass Milling, X, Y, Z

Features: Center Cutting, 2xD, Corner Radius

item code: 111005
