Solid Carbide End Mill 8mm 8R4x12x59xD8

Solid Carbide End Mill 8mm 8R4x12x59xD8

$53.24 - $53.24
$53.24
$53.24 - $53.24
$53.24

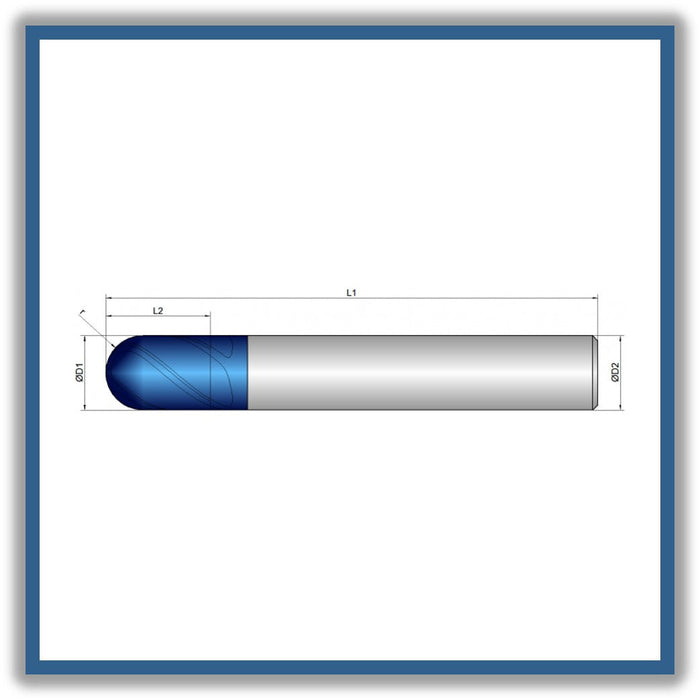

D1 (Cutting diameter): 8mm
L2 ( Length of cut): 12mm
L1 (Total length): 59mm
D2 (Shank diameter): 8mm
Z (Number of cutting edges): 4
R Corner radius: 4
Helical pitch: 30

  • Adjusted wedge angle and helical pitch for smooth running and a soft cut
  • Reinforced face geometry with a special finishing bevel for maximum performance and surface quality
  • Highest machining performance due to four cutting edges
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
  • For use in HSC milling
  • For roughing and finishing

 * MADE IN GERMANY *



Cooling: water max

Tolerance: f8

Coating: AlphaNox Navy X

Strategy: High Speed Cutting

Applications: Engraving, Multipass Milling, X,Y,Z

Features: Center Cutting, 1XD, Corner Radius

item code:199005
