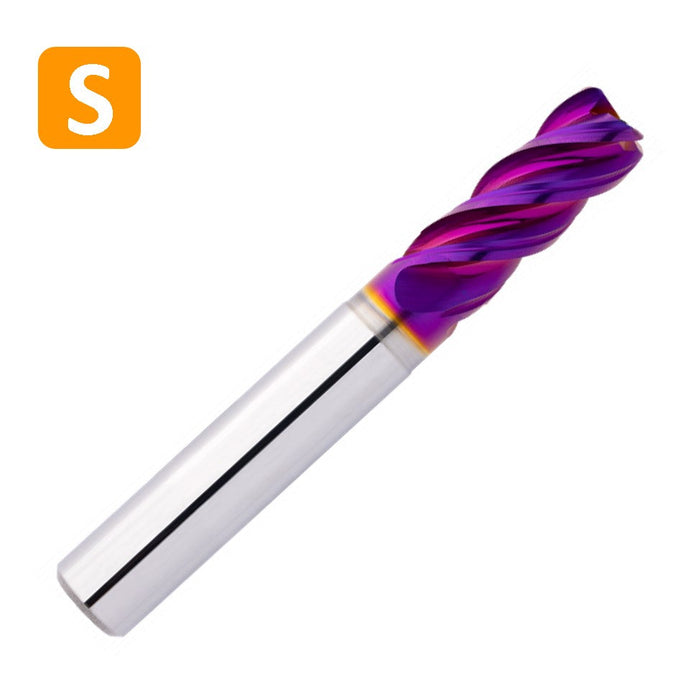

Solid Carbide End Mill 8mm 8R0.3x19-25x63xD8

Original price $67.84 - Original price $67.84
Original price
$67.84
$67.84 - $67.84
Current price $67.84


D1 (Cutting diameter): 8mm
D3 (Undercut diameter): 7.7mm
L2 ( Length of cut)19mm
L3 (Length of undercut): 25mm
L1 (Total length): 63mm
D2 (Shank diameter): 8mm
Z (Number of cutting edges): 4
R Corner radius: 0.3
Helical pitch: 40

  • Unequal tooth pitch combined with variable helical pitch for smooth running
  • Highly polished chip space for safe chip evacuation
  • Reinforced face for process reliable, helical diving
  • Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
  • Radius tolerance r > 1.5 mm: ± 0.005 mm
  • For roughing and finishing, up to 1,5xD full slot
  • Multipass milling of 3D contours

 * MADE IN GERMANY *



Cooling: water max

Tolerance: e8

Coating: AlphaFusion Violet X

Strategy: Extended Trochoidal Cutting, High Speed Cutting, High Performance Cutting

Applications: Multipass Milling, Trimming, Full Slot, X, Y, Helical

Features: Unequal Tooth Pitch, 2XD, Dynamic Helical Pitch, Center Cutting

item code: 216007
