Solid Carbide End Mill 8mm 8C0.2x13-62x100xD8

Original price $55.68 - Original price $55.68
Original price
$55.68
$55.68 - $55.68
Current price $55.68

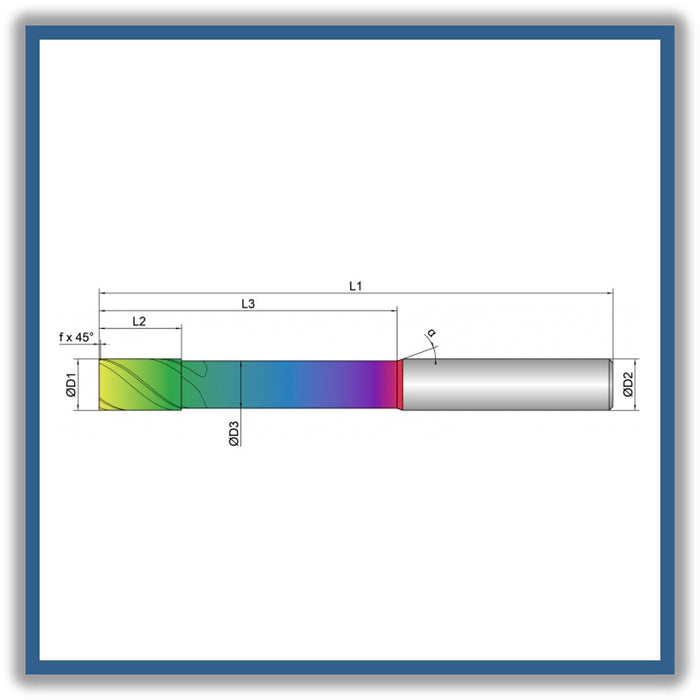

D1 (Cutting diameter): 8mm
D3 (Undercut diameter): 7.4mm
L2 ( Length of cut): 13mm
L3 (Length of undercut): 62mm
L1 (Total length): 100mm
D2 (Shank diameter): 8mm
Z (Number of cutting edges): 3
45DEG Corner chamfer: 0.2mm
Helical pitch: 45


  • Defined clearance angle for ideal stabilization with high cutting depths
  • Special helical pitch for smooth running and soft cut
  • Extra large chip chambers for an extreme chip volume
  • Long version for deeper cavities
  • For process reliable, helical diving and immersion
  • For roughing and finishing
 * MADE IN GERMANY *

Cooling: air-cooled, dry, water min, water max

Tolerance: h6

Coating: AlphaSlide Rainbow

Strategy: High Performance cutting

Applications: Trimming, Full slot, X,Y,helical

Features: Unequal tooth pitch, 1.5xD, Center Cutting, corner bevel

item code: 105006
