Solid Carbide End Mill 6mm 6C0.2x13-18x57xD6
Original price
-
Original price
Original price
-
Current price

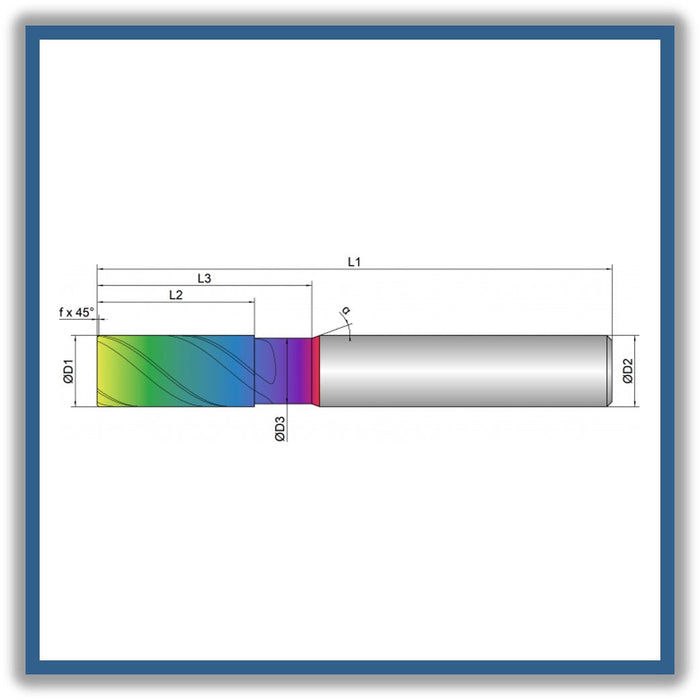

D1 (Cutting diameter): 6mm
D3 (Undercut diameter):5.7mm
L2 ( Length of cut): 13mm
L3 (Length of undercut):18mm
L1 (Total length): 57mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 3
45DEG Corner chamfer: 0.2mm
Helical pitch: 45
- Defined clearance angle for ideal stabilization with high cutting depths
- Special helical pitch for smooth running and soft cut
- Extra large chip chambers for an extreme chip volume
- For process reliable, helical diving and immersion
- For roughing and finishing, up to 2xD full slot
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: h6
Coating: AlphaSlide Rainbow
Strategy: Extended Trochoidal Cutting, High Performance cutting
Applications: Trimming, Full slot, X,Y,helical
Features: Unequal tooth pitch, 2xD, Center Cutting, corner bevel
item code: 104005
