Solid Carbide End Mill 5mm 5R0.2x16-0x65xD6

Original price $53.24 - Original price $53.24
Original price
$53.24
$53.24 - $53.24
Current price $53.24

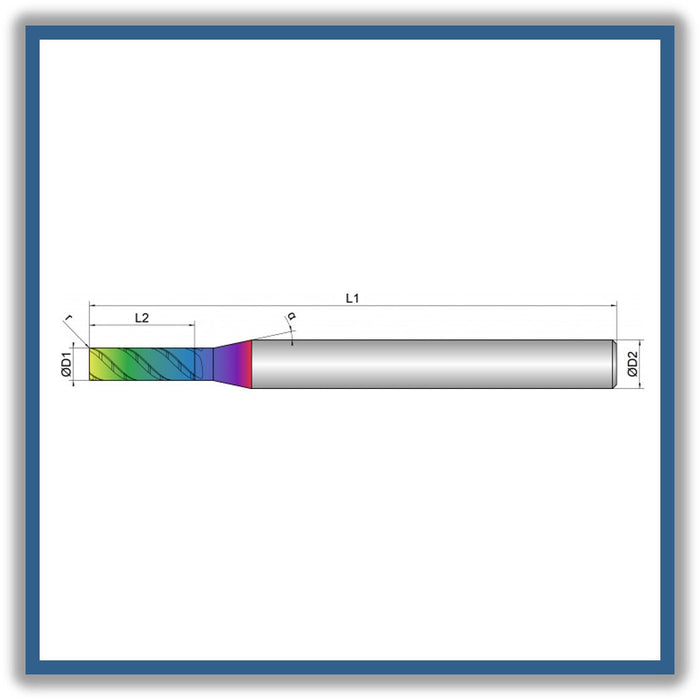

D1 (Cutting diameter): 5mm
D3 (Undercut diameter):0mm
L2 ( Length of cut):16mm
L3 (Length of undercut): 65mm
L1 (Total length): 6mm
D2 (Shank diameter): 3mm
Z (Number of cutting edges): 3
R Corner radius: 0.2mm
Helical pitch: 45




  • Roughing teeth for the smallest chips in volume machining
  • Special helical pitch for smooth running and soft cut
  • Extra large chip chambers for an extreme chip volume
  • Also ideally designed for trochoidal milling
  • For roughing, up to 3xD full slot
  • For process reliable, helical diving and immersion
 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaSlide Rainbow

Strategy: Extended Trochoidal Cutting, High Performance cutting

Applications: Trimming, Full slot, X,Y,helical

Features: Unequal tooth pitch, Serrated edge, 3xD, Center Cutting, Corner Radius

item code: 107002
