Solid Carbide End Mill 4mm 4C0.1x13-18x65xD6

Solid Carbide End Mill 4mm 4C0.1x13-18x65xD6

$42.43 - $42.43
$42.43
$42.43 - $42.43
$42.43

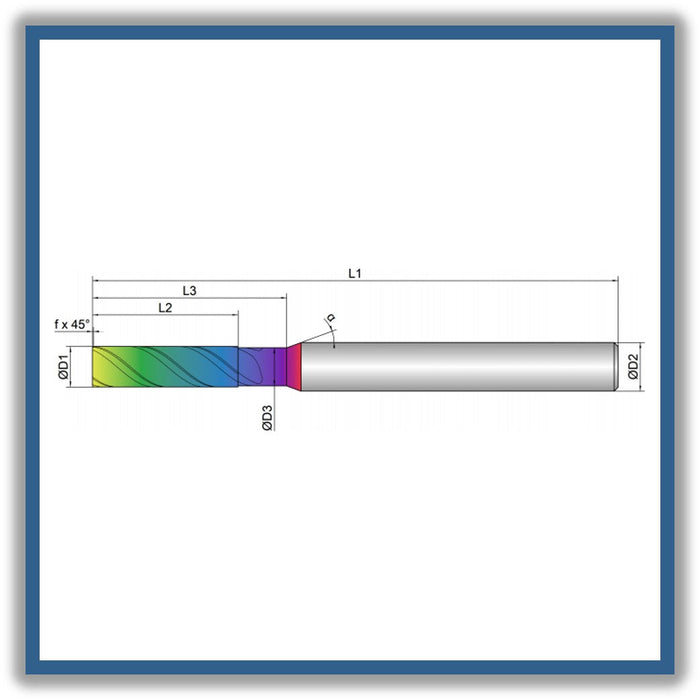

D1 (Cutting diameter): 4mm
D3 (Undercut diameter): 3.7mm
L2 ( Length of cut): 13mm
L3 (Length of undercut): 18mm
L1 (Total length): 65mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 3
45DEG Corner chamfer: 0.1mm
Helical pitch: 45



  • Defined clearance angle for ideal stabilization with high cutting depths
  • Special helical pitch for smooth running and soft cut
  • Extra large chip chambers for an extreme chip volume
  • For process reliable, helical diving and immersion
  • For roughing and finishing
 * MADE IN GERMANY *






Cooling: air-cooled, dry, water min, water max

Tolerance: h6

Coating: AlphaSlide Rainbow

Strategy: Extended Trochoidal Cutting,  High Performance Cutting

Applications: Trimming, Full Slot,  X, Y, Helical

Features:  Unequal Tooth Pitch, 3xD, Center Cutting, Corner Bevel

item code: 142009
