Solid Carbide End Mill 4mm 4x13-18x57xD6

Original price $45.41 - Original price $45.41
Original price
$45.41
$45.41 - $45.41
Current price $45.41

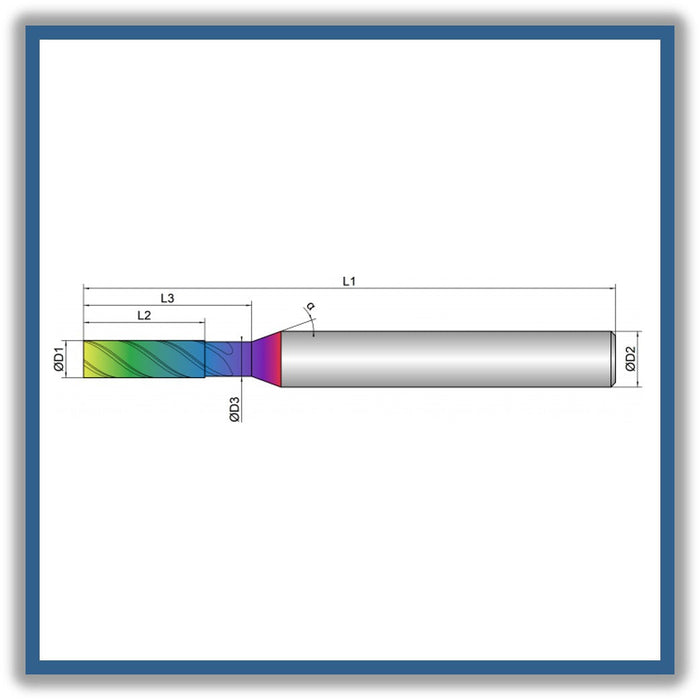

D1 (Cutting diameter): 4mm
D3 (Undercut diameter): 3.7mm
L2 ( Length of cut): 13mm
L3 (Length of undercut): 18mm
L1 (Total length): 57mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 4
Helical pitch: 38

  • Extra large chip chambers for ideal chip evacuation
  • Unequal tooth pitch combined with variable helical pitch for smooth running
  • Reinforced face with 2 cutting edges to the center
  • Perfected for high radial depth of cutting and full slot milling
  • For process reliable, helical diving and immersion
  • For roughing and finishing, up to 1.5xD full slot
 * MADE IN GERMANY *

Cooling: air-cooled, dry, water min, water max

Tolerance: h6

Coating: AlphaSlide Rainbow

Strategy: Extended Trochoidal Cutting,  High Performance Cutting

Applications: Trimming, Full Slot,  X, Y, Helical

Features:  Unequal Tooth Pitch, 2xD, Dynamic Helical Pitch, Center Cutting, Sharp-Edged

item code: 137001
