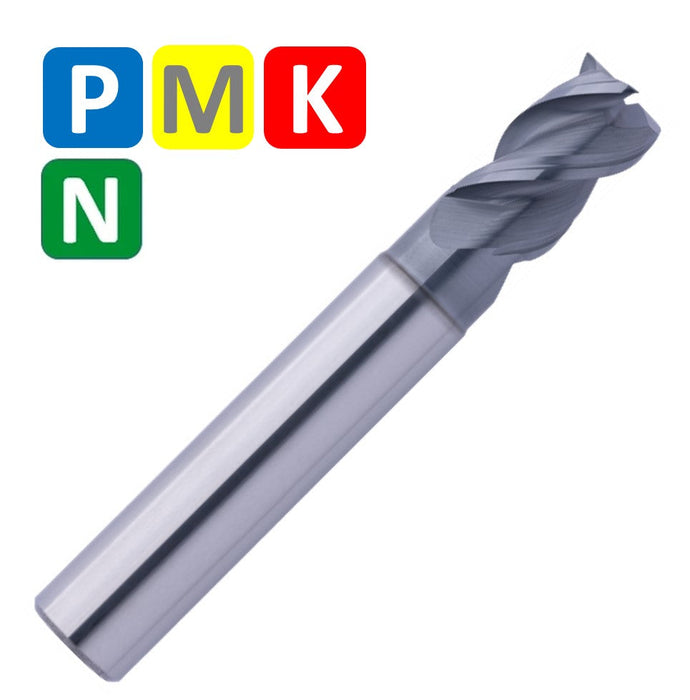

Solid Carbide End Mill 3mm 3C0.1x6x54xD6

Solid Carbide End Mill 3mm 3C0.1x6x54xD6

$20.27 - $20.27
$20.27
$20.27 - $20.27
$20.27


D1 (Cutting diameter): 3mm
L2 ( Length of cut): 6mm
L1 (Total length): 54mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 3
45DEG Corner chamfer: 0.1mm
Helical pitch: 45



  • Adapted clearance angle for reliable machining
  • Unequal tooth pitch for smooth running
  • Large chip chambers for good chip evacuation



 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: BetaUni Iron

Strategy: Extended Trochoidal Cutting, High Performance Cutting, Universal Machining

Applications: Trimming, Full Slot, X, Y, Helical

Features:  Unequal Tooth Pitch, 1.5xD, Center Cutting, Corner Bevel

item code: 152001
