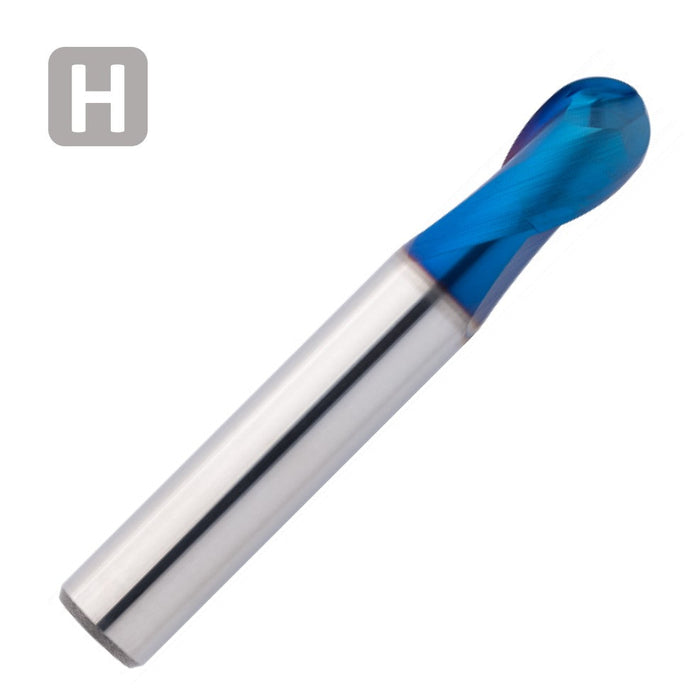

Solid Carbide End Mill 3mm 3R1.5x6x50xD3

Solid Carbide End Mill 3mm 3R1.5x6x50xD3

$37.30 - $37.30
$37.30
$37.30 - $37.30
$37.30


D1 (Cutting diameter): 3mm
L2 ( Length of cut): 6mm
L1 (Total length): 50mm
D2 (Shank diameter): 3mm
Z (Number of cutting edges): 2
R Corner radius: 1.5
Helical pitch: 30

  • Ultrafine carbide grade specially developed for machining hardened steels
  • Adapted rake angle for safe milling up to 70 HRC
  • Defined cutting edge preparation for homogeneous wear
  • Radius tolerance r ≤ 2 mm: ± 0.003mm
  • Radius tolerance r > 2mm: ± 0.005mm

 * MADE IN GERMANY *



Cooling: air-cooled, dry

Tolerance: f8

Coating: AlphaDura Navy

Strategy: High Speed Cutting

Applications: Engraving, Multipass Milling, X, Y, Z

Features: Center Cutting, 1XD, Corner Radius

item code: 217026
