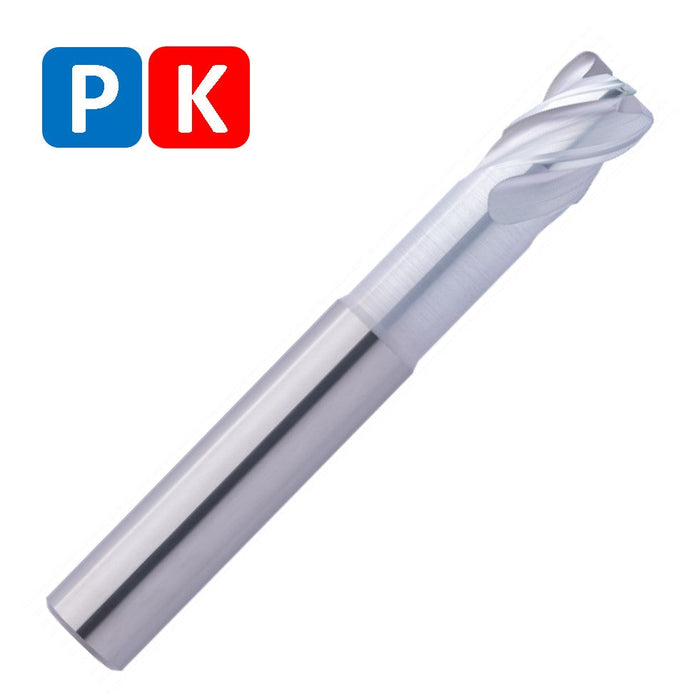

Solid Carbide End Mill 3mm 3R0.3x4-14x50xD3

Solid Carbide End Mill 3mm 3R0.3x4-14x50xD3

$34.59 - $34.59
$34.59
$34.59 - $34.59
$34.59


D1 (Cutting diameter): 3mm
D3 (Undercut diameter): 2.7 mm
L2 ( Length of cut): 4mm
L3 (Length of undercut): 14 mm
L1 (Total length): 50mm
D2 (Shank diameter): 3mm
Z (Number of cutting edges): 4
R Corner radius: 0.3
Helical pitch: 30

  • Unequal tooth pitch and variable helical pitch for smooth running
  • Specially designed cutting edge geometry for contour machining
  • Optimized chip chambers for safe evacuation of the chips
  • Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
  • Radius tolerance r > 1.5 mm: ± 0.005 mm
  • Process reliable roughing and finishing even with full slot milling
  • Multipass milling of 3D contours

 * MADE IN GERMANY *



Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Applications: X, Y, Helical

Features: Extended Trochoidal Cutting, High Speed Cutting, High Performance Cutting, Unequal Tooth Pitch, Multipass Milling, Trimming, Full Slot, Dynamic Helical Pitch, Center Cutting, 1XD, Corner Radius

item code: 175005
