Solid Carbide End Mill 3mm 3R0.1x6x54xD6

Original price $35.95 - Original price $35.95
Original price
$35.95
$35.95 - $35.95
Current price $35.95

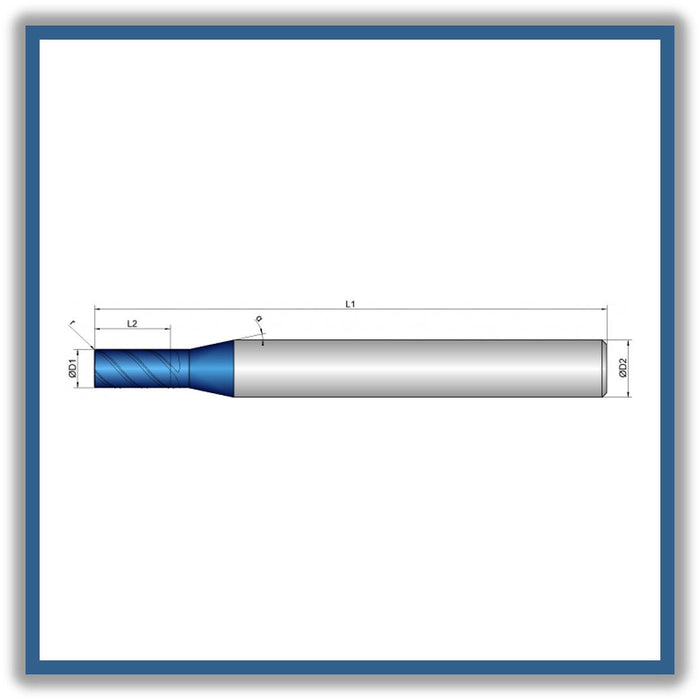

D1 (Cutting diameter): 3mm
L2 ( Length of cut)6mm
L1 (Total length): 54mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 4
R Corner radius: 0.1
Helical pitch: 40

  • Extra stable tool core with a slightly conical course
  • Special unequal tooth pitch combined with variable helical pitch for smooth running
  • Innovative grinding of the flute back for constant, ideal cooling of the cutting edges and prevention of thermal shocks
  • Designed for maximum removal rate when milling with high radial depth of cut and in the full slot up to 1xD
  • For process reliable ramping, helical immersion and diving (drilling) up to 1xD

 * MADE IN GERMANY *



Cooling: water max

Tolerance: e8

Coating: AlphaNox Navy X

Strategy: Extended Trochoidal Cutting, High Performance Cutting

Applications: Trimming, Full Slot, X, Y, Z, Helical

Features: Unequal Tooth Pitch, Dynamic Helical Pitch, Center Cutting, 1,5XD, Corner Radius

item code:189001
