Solid Carbide End Mill 2mm 2R1x4x57xD6
Original price
-
Original price
Original price
-
Current price

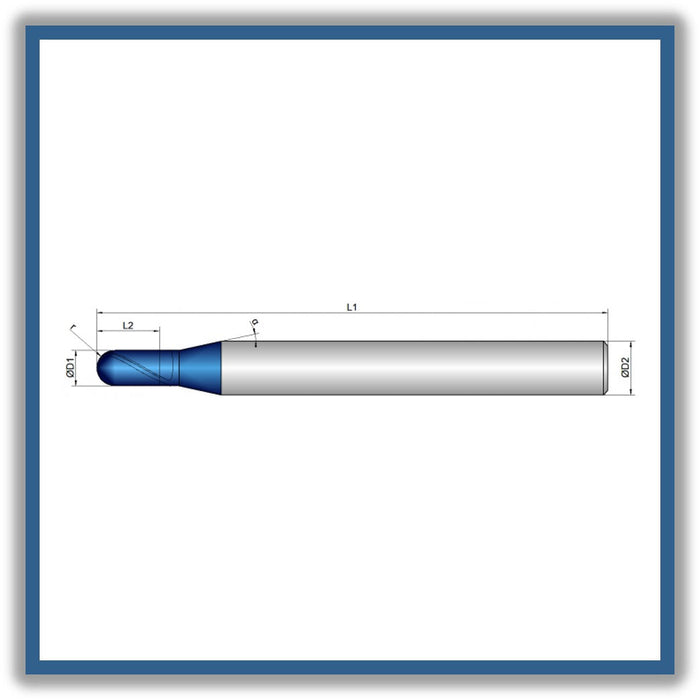

D1 (Cutting diameter): 2mm
L2 ( Length of cut): 4mm
L1 (Total length): 57mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 2
R Corner radius: 1
Helical pitch: 30
- Adjusted core for smooth running
- Defined microbevel for support and stabilization
- Optimized cross cutting edge for maximum stability in the tool center
- Radius tolerance r ≤ 2 mm: ± 0.003 mm
- Radius tolerance r > 2 mm: ± 0.005 mm
- For use in HSC milling
- For roughing and finishing
* MADE IN GERMANY *
Cooling: water max
Tolerance: f8
Coating: AlphaNox Navy X
Strategy: High Speed Cutting
Applications: Engraving, Multipass Milling, X,Y,Z
Features: Center Cutting, 1XD, Corner Radius
item code:197004
