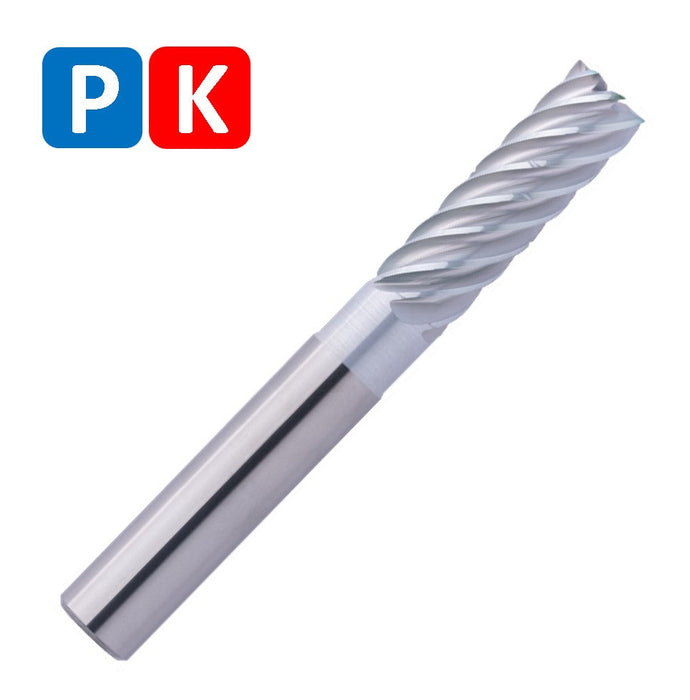

Solid Carbide End Mill 20mm 20R0.3x60-70x125xD20

Solid Carbide End Mill 20mm 20R0.3x60-70x125xD20

$315.41 - $315.41
$315.41
$315.41 - $315.41
$315.41


D1 (Cutting diameter): 20mm
D3 (Undercut diameter): 19.8 mm
L2 ( Length of cut): 60mm
L3 (Length of undercut): 70mm
L1 (Total length): 125mm
D2 (Shank diameter): 20mm
Z (Number of cutting edges): 7


  • Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
  • Adapted chip chambers for trochoidal milling
  • Optimized design of the chip breakers for maximum tool life
  • 7 cutting edges for best performance with a unique tool life
  • Ideal chip evacuation at the highest feed rates
  • For roughing and finishing under ETC conditions

 * MADE IN GERMANY *



Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Applications: X

Features:  Extended Trochoidal Cutting, Unequal Tooth Pitch, Trimming, Chip Breaking, 3XD, Dynamic Helical Pitch, Non-Center Cutting, Corner Radius

item code: 172006
