Solid Carbide End Mill 16mm 16x80-88x134xD16
Original price
-
Original price
Original price
-
Current price

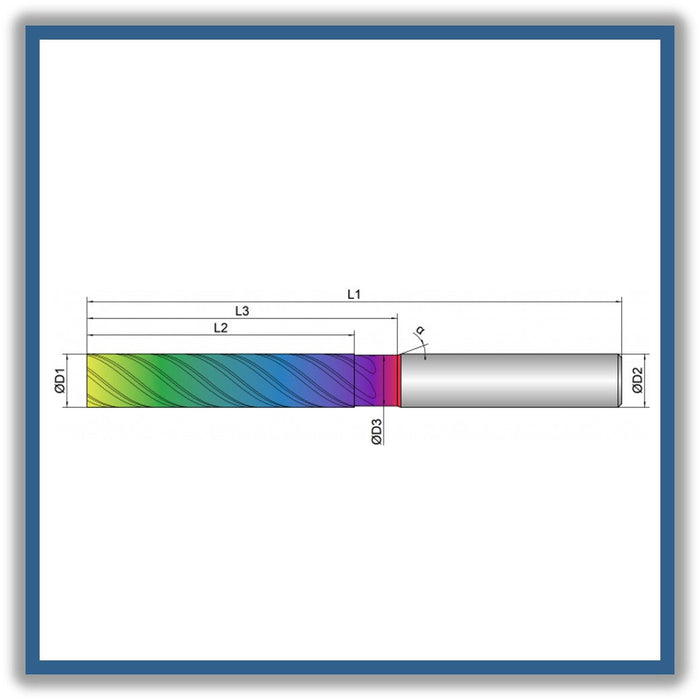

D1 (Cutting diameter): 16mm
D3 (Undercut diameter): 15.5mm
L2 ( Length of cut): 80mm
L3 (Length of undercut): 88mm
L1 (Total length): 134mm
D2 (Shank diameter): 16mm
Z (Number of cutting edges): 6
Helical pitch: 39
-
Ultra-sharp and lapped cutting edges
-
Special chip chambers designed for the evacuation of extra long and fine chips
-
Face-Finish-bevel for smooth workpiece surfaces
-
6 cutting edges for highest feed rates
-
For excellent surfaces and maximum dimensional accuracy
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: h6
Coating: AlphaSlide Rainbow
Strategy: High Performance Cutting
Applications: Trimming, X,
Features: Unequal Tooth Pitch, Dynamic Helical Pitch, 5XD, Non-Center Cutting, Sharp-Edged
item code: 129005
