Solid Carbide End Mill 16mm 16x36-42x92xD16

Original price $174.05 - Original price $174.05
Original price
$174.05
$174.05 - $174.05
Current price $174.05

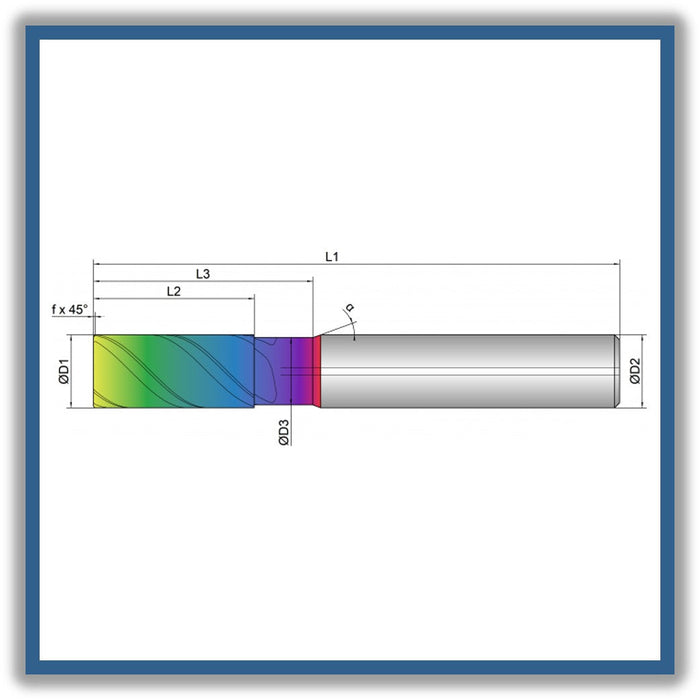

D1 (Cutting diameter): 16mm
D3 (Undercut diameter): 15mm
L2 ( Length of cut): 36mm
L3 (Length of undercut): 42mm
L1 (Total length): 92mm
D2 (Shank diameter): 16mm
Z (Number of cutting edges): 3
Helical pitch: 45



  • Defined clearance angle for ideal stabilization with high cutting depths
  • Special helical pitch for smooth running and soft cut
  • Extra large chip chambers for an extreme chip volume
  • With central inner cooling
  • For process reliable, helical diving and immersion
  • For roughing and finishing, up to 2xD full slot
 * MADE IN GERMANY *

Cooling: air-cooled, dry, water min, water max

Tolerance: h6

Coating: AlphaSlide Rainbow

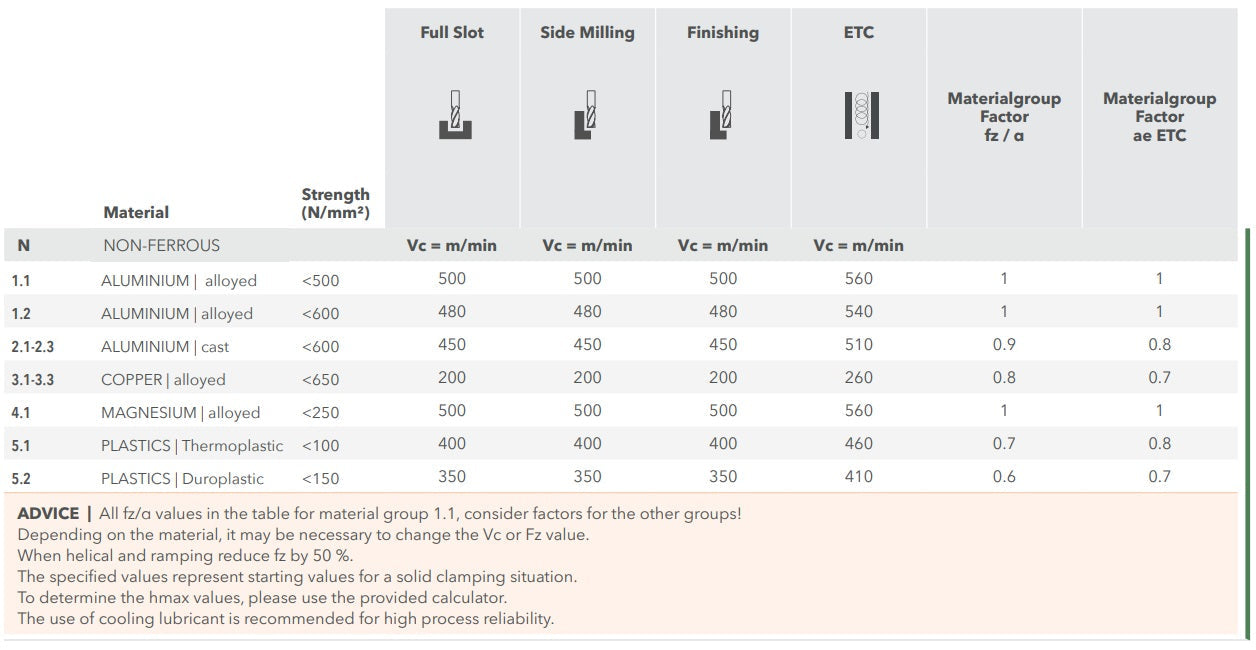

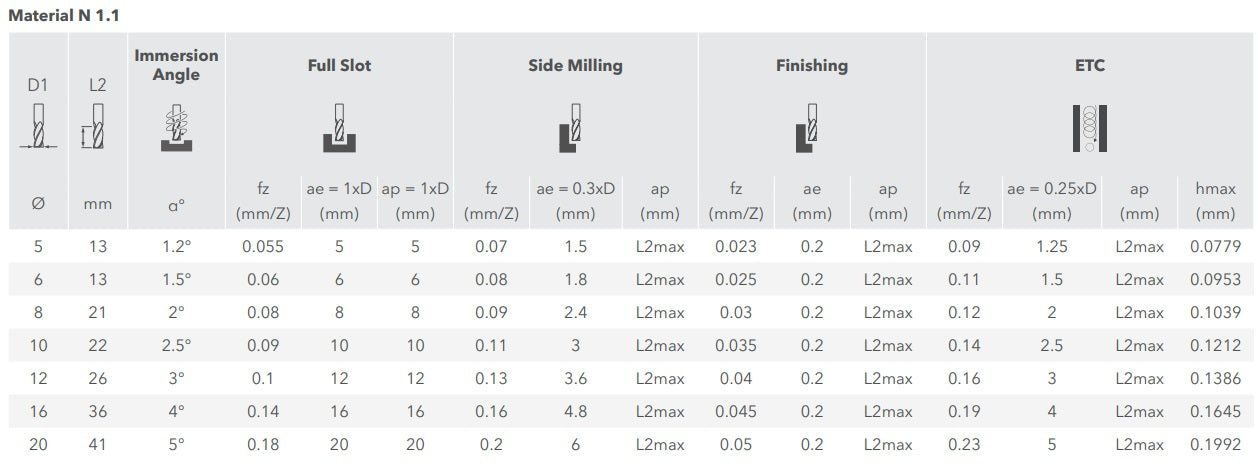

Strategy: Extended Trochoidal Cutting, High Performance Cutting

Applications: Trimming, Full Slot, X, Y, Helical

Features:  Unequal Tooth Pitch, Coolant Duct System, 2XD, Non-Center Cutting, Corner Bevel

item code: 126006
