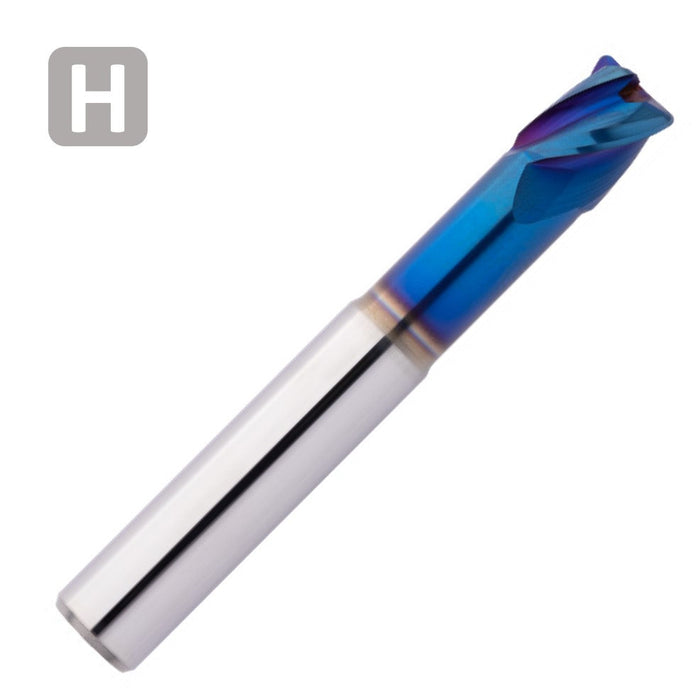

Solid Carbide End Mill 16mm 16R3x16-44x93xD16

Original price $184.86 - Original price $184.86
Original price
$184.86
$184.86 - $184.86
Current price $184.86


D1 (Cutting diameter): 16mm
D3 (Undercut diameter): 15mm
L2 ( Length of cut): 16mm
L3 (Length of undercut): 44mm
L1 (Total length): 93mm
D2 (Shank diameter): 16mm
Z (Number of cutting edges): 4
R Corner radius:  3
Helical pitch: 30

  • Ultrafine carbide grade specially developed for machining hardened steels
  • Adapted rake angle for safe milling up to 70 HRC
  • Defined cutting edge preparation for homogeneous wear
  • Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
  • Radius tolerance r > 1.5 mm: ± 0.005 mm
  • Multipass milling of 3D contours

 * MADE IN GERMANY *



Cooling: air-cooled, dry

Tolerance: e8

Coating: AlphaDura Navy

Strategy: High Speed Cutting, High Performance Cutting

Applications: Multipass Milling, TrimmingX, Helical

Features: Unequal Tooth Pitch, Dynamic Helical Pitch, Center Cutting, 1XD, Corner Radius

item code: 210045
