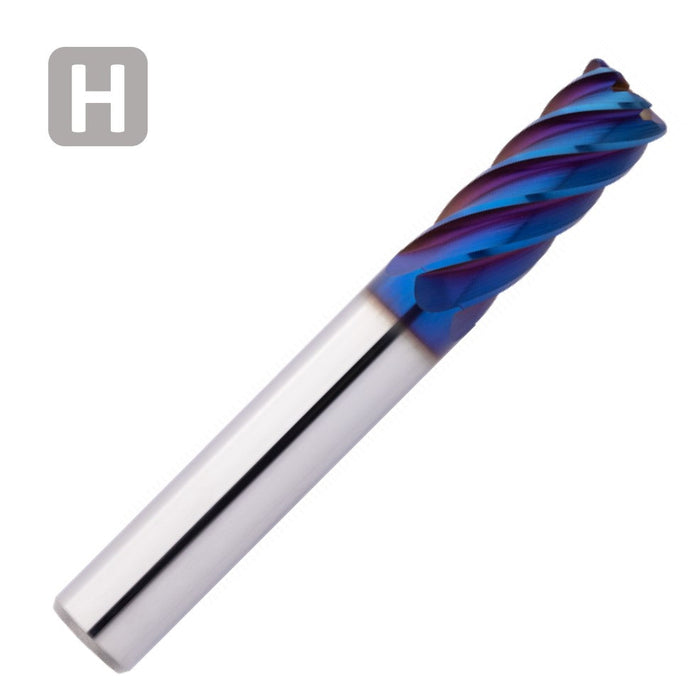

Solid Carbide End Mill 16mm 16R2x36x93xD16
Original price
-
Original price
Original price
-
Current price

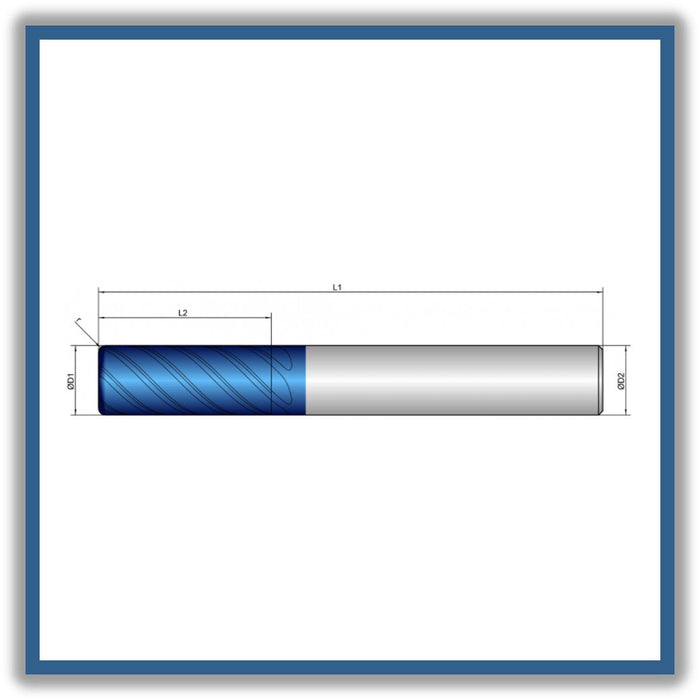

D1 (Cutting diameter): 16mm
L2 ( Length of cut): 36mm
L1 (Total length): 93mm
D2 (Shank diameter): 16mm
Z (Number of cutting edges): 8
R Corner radius: 2
Helical pitch: 45
- Ultrafine carbide grade specially developed for machining hardened steels
- Adapted rake angle for safe milling up to 70 HRC
- Defined cutting edge preparation for homogeneous wear
- Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
- Radius tolerance r > 1.5 mm: ± 0.005 mm
- Reduce the axial depth of cutting with increasing hardness
- Multipass milling of 3D contours
* MADE IN GERMANY *
Cooling: air-cooled, dry
Tolerance: e8
Coating: AlphaDura Navy
Strategy: Extended Trochoidal Cutting, High Speed Cutting, High Performance Cutting
Applications: Multipass Milling, Trimming, X, Helical
Features: Dynamic Helical Pitch, Center Cutting, Corner Radius
item code: 213010
