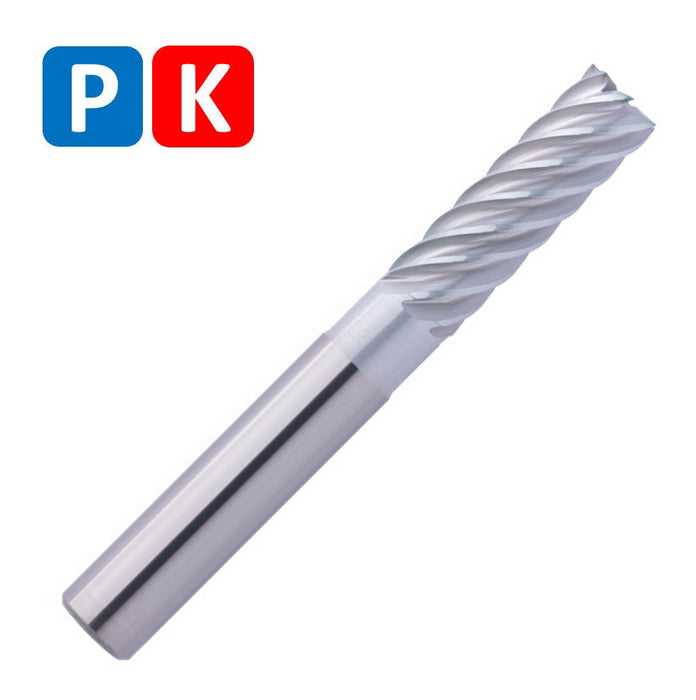

Solid Carbide End Mill 16mm 16R0.5x48-55x110xD16

Solid Carbide End Mill 16mm 16R0.5x48-55x110xD16

$230.81 - $230.81
$230.81
$230.81 - $230.81
$230.81
D1 (Cutting diameter): 16mm
D3 (Undercut diameter): 15.5mm
L2 ( Length of cut): 48mm
L3 (Length of undercut): 55mm
L1 (Total length): 110mm
D2 (Shank diameter):16mm
Z (Number of cutting edges): 7
R Corner radius: 0.5mm
Helical pitch: 39



  • 7 finely finished and homogenized cutting edges
  • Special groove profile for the removal of long chips
  • Variable helical pitch and unequal tooth pitch for maximum smoothness
  • 7 cutting edges for highest feed rates
  • For excellent surfaces and maximum dimensional accuracy
 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy:  High Performance Cutting

Applications:  Trimming, X

Features: Unequal Tooth Pitch, 3xD, Dynamic Helical Pitch, Non-Center Cutting, Corner Radius, Sharp Edged

item code: 114018
