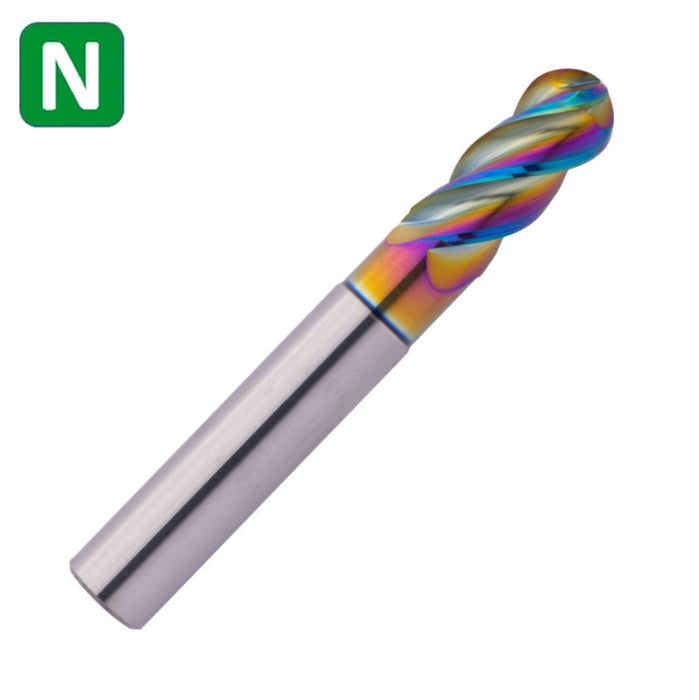

Solid Carbide End Mill 12mm 12R6x26-36x83xD12

Solid Carbide End Mill 12mm 12R6x26-36x83xD12

$111.89 - $111.89
$111.89
$111.89 - $111.89
$111.89

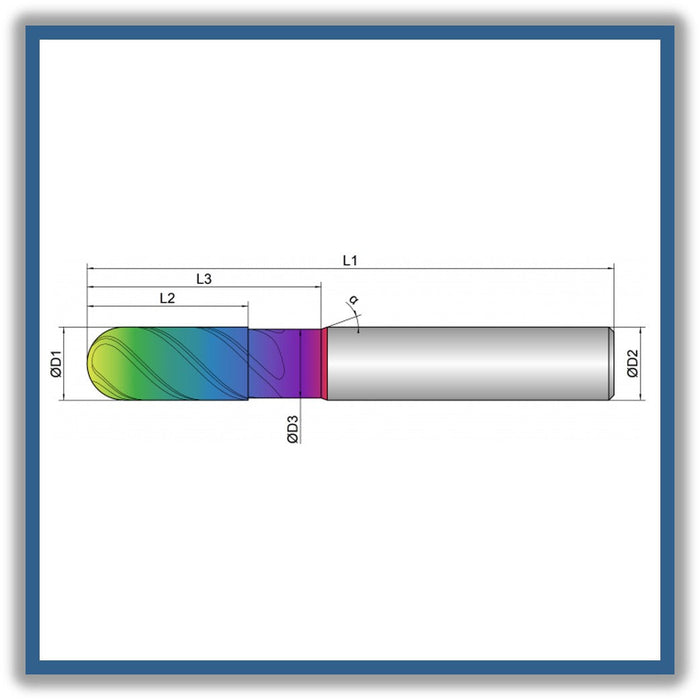

D1 (Cutting diameter):12mm
D3 (Undercut diameter):11.4mm
L2 ( Length of cut): 26mm
L3 (Length of undercut): 36mm
L1 (Total length): 83mm
D2 (Shank diameter):12mm
Z (Number of cutting edges): 4
R Corner radius:6mm
Helical pitch: 45


  • Four cutting edges to the center for the best dimensional
  • accuracy at high material removal rates
  • Defined microbevel and optimized face geometry for excellent
  • surface quality
  • For use in HSC milling
  • For roughing and finishing
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: h6

Coating: AlphaSlide Rainbow

Strategy:  High Speed Cutting

Applications: Engraving, Multipass Milling, X, Y, Z

Features: Center Cutting, 2xD, Corner Radius

item code: 110007
