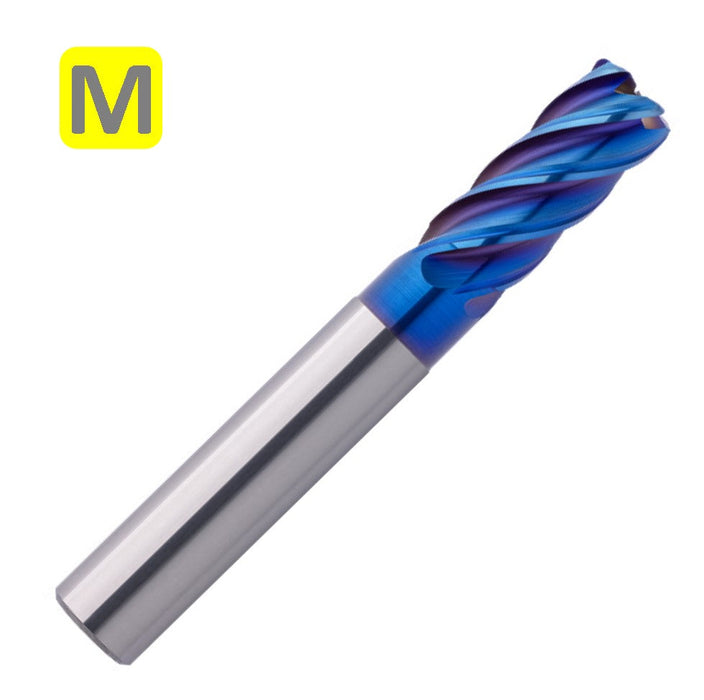

Solid Carbide End Mill 12mm 12R3x26-38x83xD12

Original price $108.65 - Original price $108.65
Original price
$108.65
$108.65 - $108.65
Current price $108.65

D1 (Cutting diameter): 12mm
D3 (Undercut diameter): 11.6mm
L2 ( Length of cut)26mm
L3 (Length of undercut): 38mm
L1 (Total length): 83mm
D2 (Shank diameter): 12mm
Z (Number of cutting edges): 5
R Corner radius: 3
Helical pitch: 40

  • Five cutting edges for high productivity with flexible use
  • Unequal tooth pitch and variable helical pitch for perfect smoothness and a soft cut
  • Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
  • Radius tolerance r > 1.5 mm: ± 0.005 mm
  • Adapted geometry for the special challenges of 3D multipass milling contours in different stainless steels

 * MADE IN GERMANY *



Cooling: water max

Tolerance: e8

Coating: AlphaNox Navy X

Strategy: Extended Trochoidal Cutting, High Speed Cutting, High Performance Cutting

Applications: Multipass Milling, Trimming, X,Y, Helical

Features: Unequal Tooth Pitch, 2XD, Dynamic Helical Pitch, Center Cutting, Corner Radius

item code:196016
