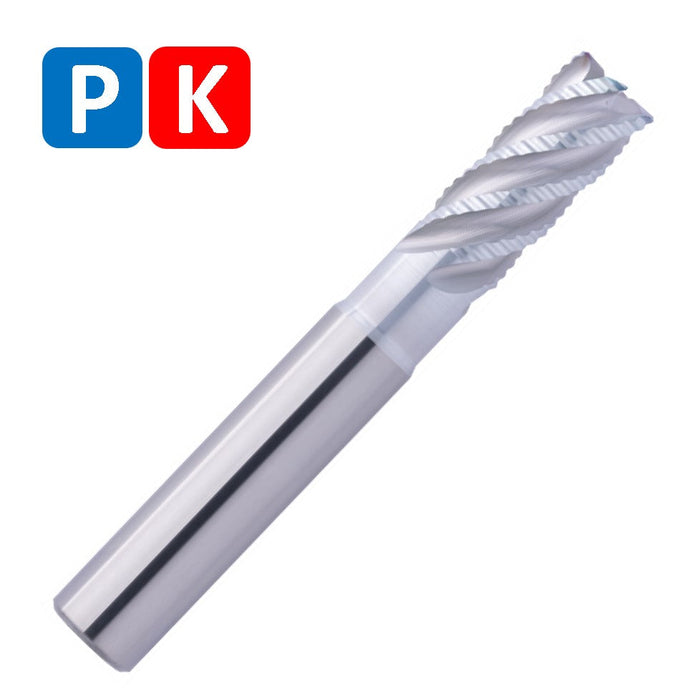

Solid Carbide End Mill 10mm 10R0.32x22-30x72xD10
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 10mm
D3 (Undercut diameter): 9.6mm
L2 ( Length of cut): 22mm
L3 (Length of undercut): 30mm
L1 (Total length): 72mm
D2 (Shank diameter): 10mm
Z (Number of cutting edges): 5
R Corner radius: 0.32
Helical pitch: 45
- Optimized roughing teeth for soft cut and small chips
- Ascending reinforced tool core for maximum stability
- Variable helical pitch and unequal tooth pitch for smooth running
- With central inner cooling
- Extreme material removal at the highest performance
- Also ideally designed for trochoidal milling
- For roughing, up to 2xD full slot
- For process reliable, helical immersion
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: e8
Coating: AlphaFerro Platin X
Strategy: Extended Trochoidal Cutting, High Performance Cutting
Applications: Trimming, Full Slot, X, Y, Helical
Features: Unequal Tooth Pitch, Coolant Duct System, Serrated Edge, 2XD, Dynamic Helical Pitch, Center Cutting, Corner Radius
item code:185004
