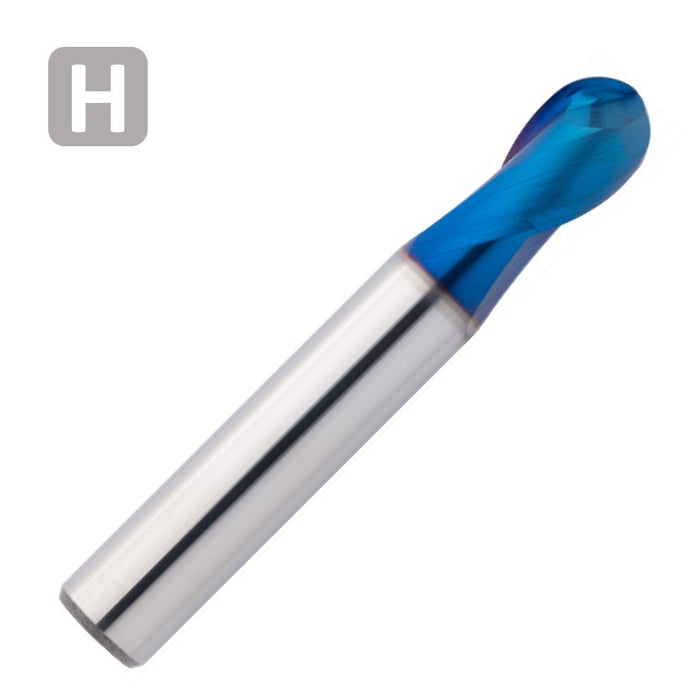

Solid Carbide End Mill 1.5mm 1.5R0.75x3x54xD6

Original price $34.86 - Original price $34.86
Original price
$34.86
$34.86 - $34.86
Current price $34.86


D1 (Cutting diameter): 1.5mm
L2 ( Length of cut)3mm
L1 (Total length): 54mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 2
R Corner radius: 0.75
Helical pitch: 30

  • Ultrafine carbide grade specially developed for machining hardened steels
  • Adapted rake angle for safe milling up to 70 HRC
  • Defined cutting edge preparation for homogeneous wear
  • Radius tolerance r ≤ 2 mm: ± 0.003mm
  • Radius tolerance r > 2mm: ± 0.005mm

 * MADE IN GERMANY *



Cooling: air-cooled, dry

Tolerance: f8

Coating: AlphaDura Navy

Strategy: High Speed Cutting

Applications: Engraving, Multipass MillingX, Y, Z

Features: Center Cutting, 1XD, Corner Radius

item code: 217020
