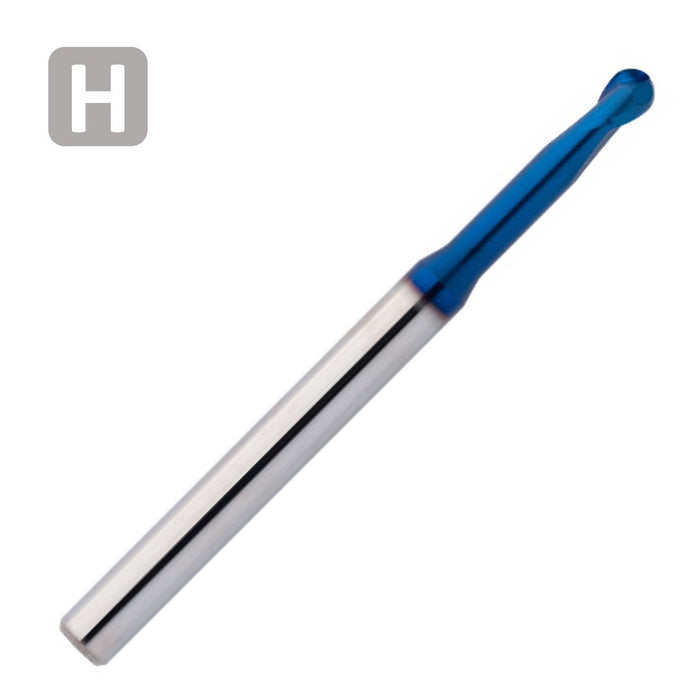

Solid Carbide End Mill 0.3mm 0.3R0.15x0.24-2.25x50xD4
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 0.3mm
D3 (Undercut diameter): 0.27mm
L2 ( Length of cut): 0.24mm
L3 (Length of undercut): 2.25mm
L1 (Total length): 50mm
D2 (Shank diameter): 4mm
Z (Number of cutting edges): 2
R Corner radius: 0.15
Helical pitch: 30
- Ultrafine carbide grade developed for machining hardened steels
- Optimized face geometry for long tool life and highest dimensional accuracy
- Reinforced core for milling up to 70 HRC
- Tolerance D1: -0.001/-0.006 mm
- Tolerance D3: 0/-0.02 mm
- Radius tolerance r: 0/-0.003 mm (measured from 0-90°)
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: d04
Coating: AlphaDura Navy
Strategy: High Speed Cutting
Applications: Engraving, Multipass Milling, X, Y, Z
Features: Center Cutting, Corner Radius
item code: 220003
