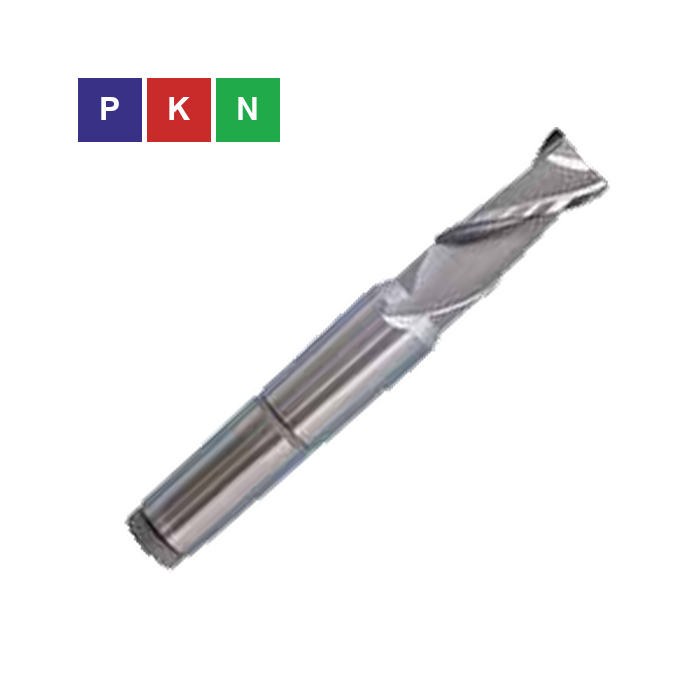

3144 HSSE Taper-Shank End Mill

Sign in to view price and availability

3144 HSSE Taper-Shank End Mill

Taper-shank end mill from HEPYC series 3144. Tool material: High-speed steel (HSSE). Standard / manufacturer designation: DIN 326 N.

Key Features:

  • Tool material: High-speed steel (HSSE)
  • Standard / manufacturer designation: DIN 326 N
  • Number of flutes Z: 2Z
  • Geometry / design: N
  • Helix angle: 30°
  • Taper shank to DIN 228 A

Recommended Materials:

P Steels

  • Steels <800 N/mm² – Optimal suitability
  • Steels <1,000 N/mm² – Alternative suitability

M Stainless steels

  • Stainless steels <950 N/mm² – Alternative suitability

K Cast iron

  • Cast iron <500 N/mm² – Alternative suitability
  • Cast iron <800 N/mm² – Alternative suitability

N Non-ferrous materials

  • Aluminum (Al) – Alternative suitability
  • Copper and copper alloys (Cu) – Optimal suitability
  • Magnesium / zinc (Mg/Zn) – Alternative suitability
  • Plastics – Alternative suitability
