External Turning Holders 93° SVJCR – Series

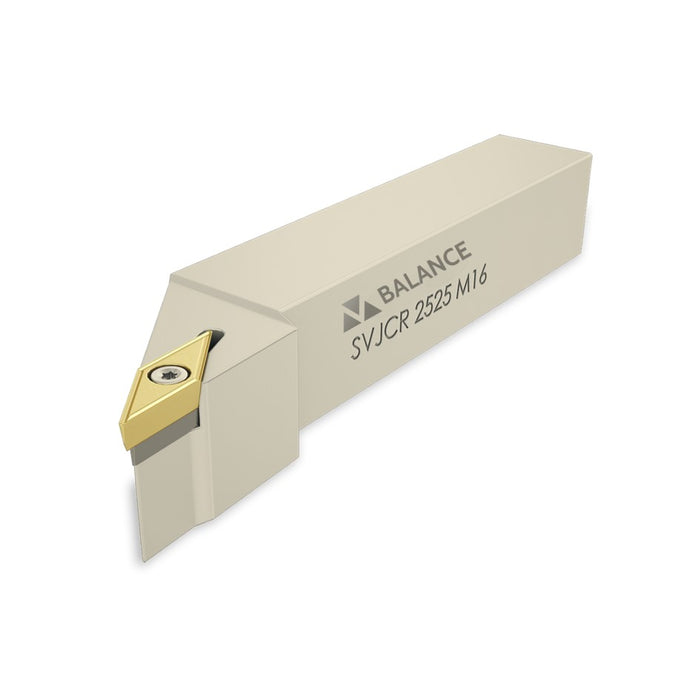

The SVJCR External Turning Holder is designed for precision external turning and profiling operations. It features a 93° approach angle and is designed for VC-style 35° diamond inserts, providing excellent accessibility and precise cutting performance. Available in multiple shank sizes and insert configurations, the series is suitable for a wide range of CNC external turning applications.

Key Features

• External turning and profiling holder

• SVJCR configuration

• 93° approach angle

• Designed for VC-style 35° diamond inserts

• Suitable for external profiling and finishing operations

• Excellent accessibility for complex profiles

• Multiple shank sizes available

• Suitable for CNC turning applications

Compatible Inserts

• VC.. 1103 – for SVJCR ..11 holders

• VC.. 1604 – for SVJCR ..16 holders

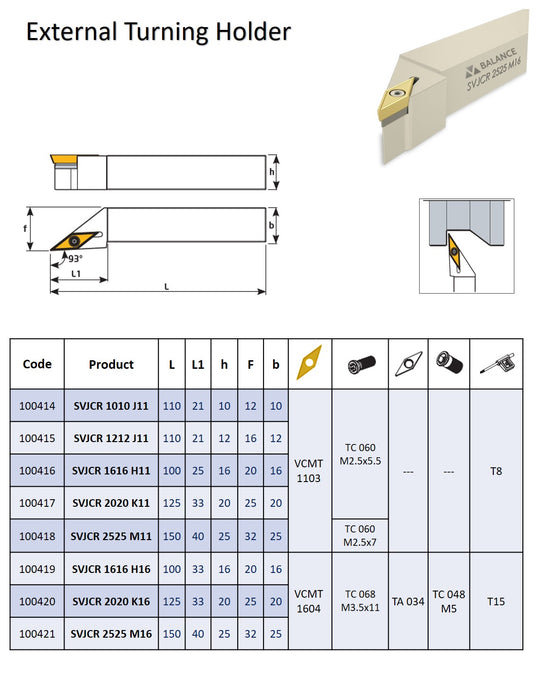

Available Models

• SVJCR 1010 J11 – 10 × 10 mm shank, 110 mm length

• SVJCR 1212 J11 – 12 × 12 mm shank, 110 mm length

• SVJCR 1616 H11 – 16 × 16 mm shank, 100 mm length

• SVJCR 2020 K11 – 20 × 20 mm shank, 125 mm length

• SVJCR 2525 M11 – 25 × 25 mm shank, 150 mm length

• SVJCR 1616 H16 – 16 × 16 mm shank, 100 mm length

• SVJCR 2020 K16 – 20 × 20 mm shank, 125 mm length

• SVJCR 2525 M16 – 25 × 25 mm shank, 150 mm length
