3xD Solid Carbide Drill 140º tip TiAlN coating DIN 6535 with internal Coolant 13.5mm 13.5x77x124xD14

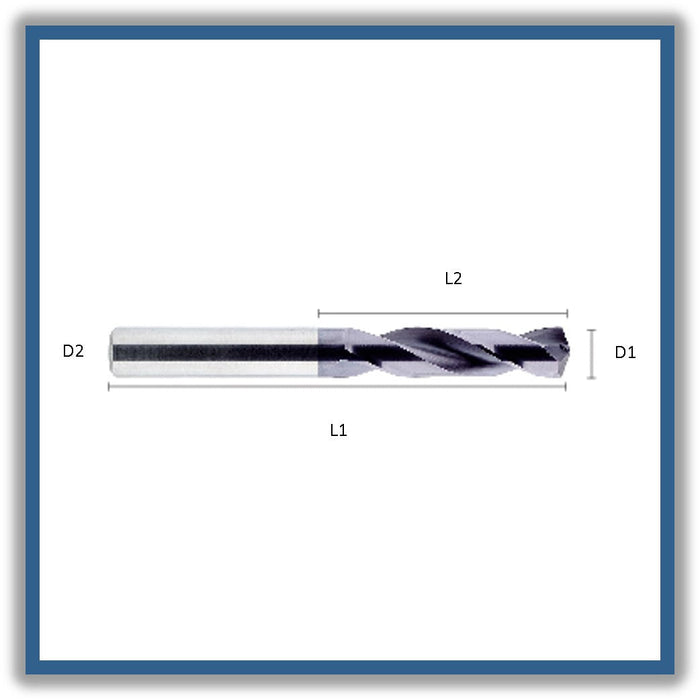

D1 (Cutting diameter): 13.5mm
L2 (Length of cut): 77mm
L1 (Total length): 124mm
D2 (Shank diameter): 14
D3 (Undercut diameter) : 30mm

• Solid carbide HM
• Drilling depth 3xd
• 140º tip
• 30º propeller
• Cylindrical handle DIN 6535HA
• TiAlN coating
• Internal cooling


Applications:

Soft magnetic steels, construction and carburizing steels, and non-alloyed and alloyed carbon steels up to a strength of 55HRC

item code: 234094
