3xD Solid Carbide Drill 140º tip TiAlN coating DIN 6535 with internal Coolant 15.8mm 15.8x83x133xD16

3xD Solid Carbide Drill 140º tip TiAlN coating DIN 6535 with internal Coolant 15.8mm 15.8x83x133xD16

$176.22 - $176.22
$176.22
$176.22 - $176.22
$176.22

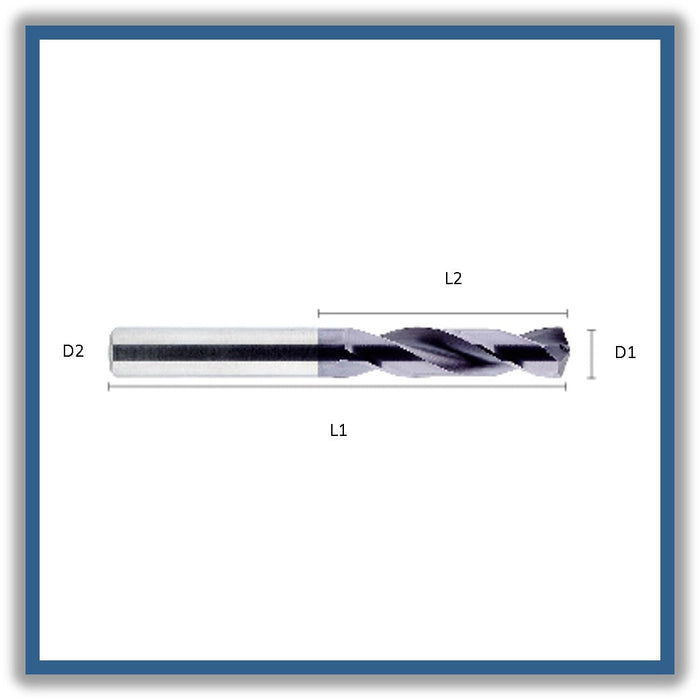

D1 (Cutting diameter): 15.8mm
L2 (Length of cut): 83mm
L1 (Total length): 133mm
D2 (Shank diameter): 16
D3 (Undercut diameter) : 30mm
  • Solid carbide HM
  • Drilling depth 3xd
  • 140º tip
  • 30º propeller
  • Cylindrical handle DIN 6535HA
  • TiAlN coating
  • Internal cooling

Applications:

Soft magnetic steels, construction and carburizing steels, and non-alloyed and alloyed carbon steels up to a strength of 55HRC

 * MADE IN SPAIN *



item code: 234104
