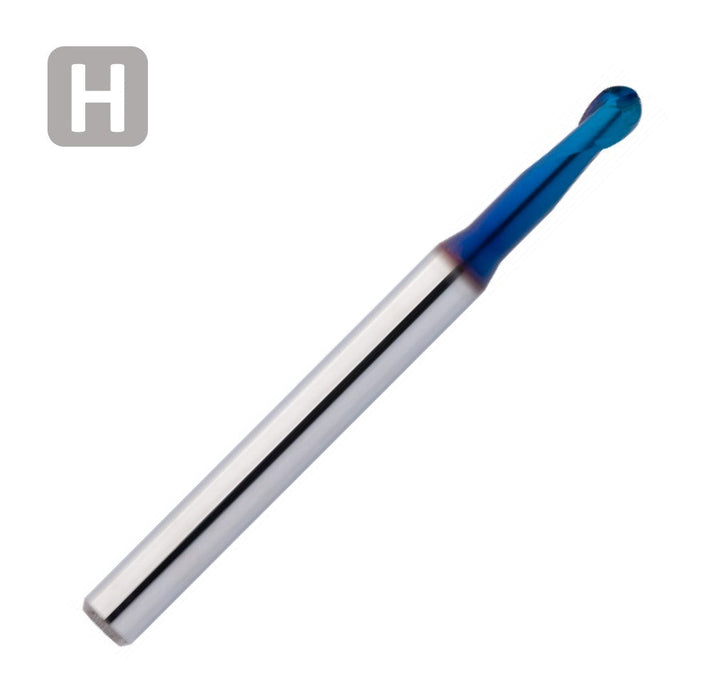

Solid Carbide End Mill 0.3mm 0.3R0.15x0.24-1.25x45xD4

Solid Carbide End Mill 0.3mm 0.3R0.15x0.24-1.25x45xD4

$49.73 - $49.73
$49.73
$49.73 - $49.73
$49.73

D1 (Cutting diameter): 0.3mm
D3 (Undercut diameter): 0.27mm
L2 ( Length of cut): 0.24mm
L3 (Length of undercut): 1.25mm
L1 (Total length): 45mm
D2 (Shank diameter): 4mm
Z (Number of cutting edges): 2
R (Corner radius): 0.15mm
Helical pitch: 30



  • Ultrafine carbide grade developed for machining hardened steels
  • Optimized face geometry for long tool life and highest dimensional accuracy
  • Reinforced core for milling up to 70 HRC
  • Tolerance D1: -0.001/-0.006 mm
  • Tolerance D3: 0/-0.02 mm
  • Radius tolerance r: 0/-0.003 mm (measured from 0-90°)
 * MADE IN GERMANY *



Cooling: air-cooled, dry, water min, water max

Tolerance: d04

Coating: AlphaDura Navy

Strategy: High Speed cutting

Applications: Engraving, Multipass Milling, X, Y, Z

Features:  Center Cutting, Corner Radius

item code: 119014
