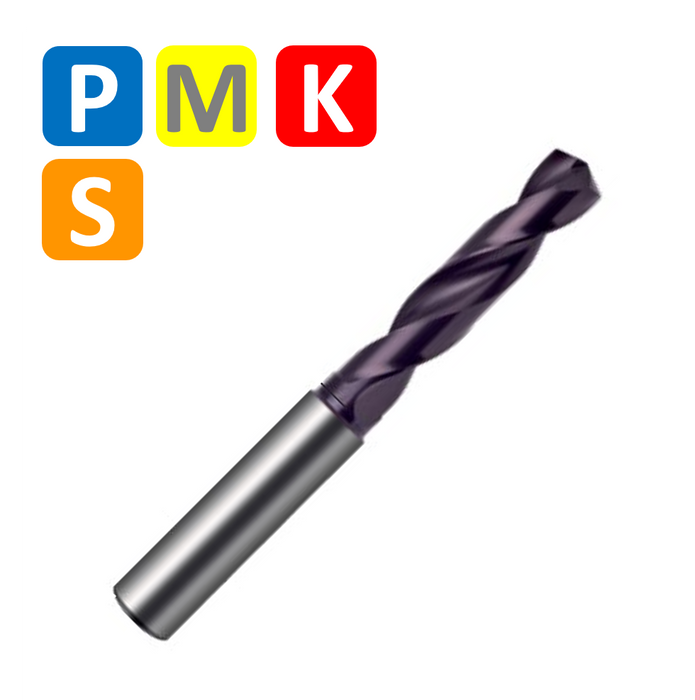

(3mm - 20mm) 3xD Solid Carbide Drill 140° TiAlN Coated DIN 6537

(3mm - 20mm) 3xD Solid Carbide Drill 140° TiAlN Coated DIN 6537

Sign in to view price and availability

The HEPYC 11750 series features solid carbide (HM) drills manufactured to DIN 6537 standards, designed for high-performance drilling in high-strength steels, stainless steels, cast iron, and titanium alloys. The 140° point geometry provides excellent self-centering, improved hole accuracy, and reduced cutting forces, while the 30° helix ensures efficient chip evacuation for stable machining.

Manufactured from solid carbide (HM K20–K40) and coated with TiAlN, these drills deliver exceptional wear resistance, high-temperature performance, and extended tool life in demanding CNC machining applications. The 3×D drilling depth makes them ideal for precision production with maximum rigidity and reliability.

Key Features

  • Solid carbide (HM K20–K40)
  • DIN 6537 standard
  • 3×D drilling depth
  • 140° point geometry
  • 30° helix
  • Cylindrical shank DIN 6535HA
  • TiAlN coating
  • Excellent chip evacuation
  • High wear and heat resistance
  • Long tool life


Recommended Materials

🟦 P – Steel (Optimal)

  • Soft magnetic steels
  • Construction steels
  • Case-hardening steels
  • Alloyed and non-alloyed steels up to 1,400 N/mm²
  • High-strength steels up to 55 HRC

🟧 M – Stainless Steel (Optimal)

  • Stainless steels up to 1,200 N/mm²

🟥 K – Cast Iron (Optimal)

  • Cast iron up to 1,400 N/mm²

🟨 S – Titanium & Superalloys (Optimal)

  • Titanium alloys
  • Nickel-based superalloys

🟩 N – Non-Ferrous Materials (Alternative)

  • Aluminum
  • Copper
  • Magnesium and zinc alloys
  • Plastics
