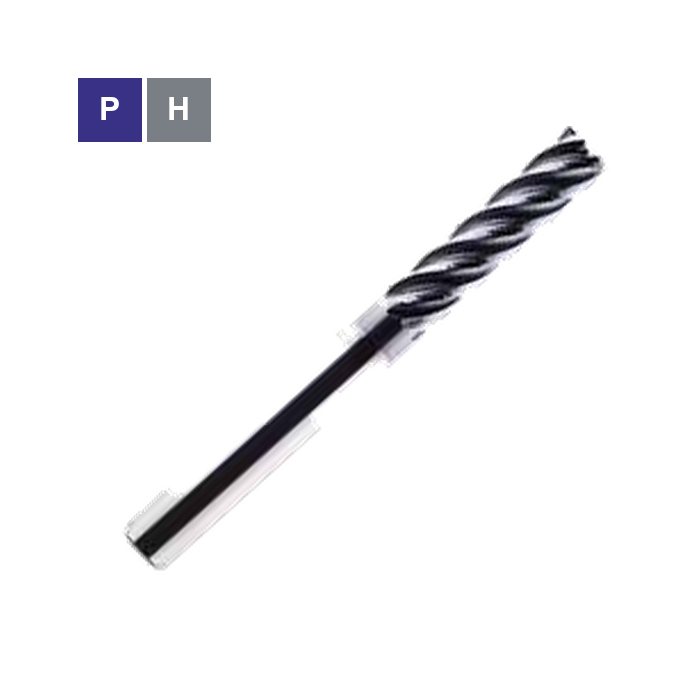

3196 Solid Carbide Square-End End Mill

3196 Solid Carbide Square-End End Mill

Square-end end mill from HEPYC series 3196. Tool material: Carbide (HM-MD). Standard / manufacturer designation: DIN 6527.

Key Features:

• Tool material: Carbide (HM-MD)
• Standard / manufacturer designation: DIN 6527
• Number of flutes Z: 5Z
• Geometry / design: N-V
• Coating / treatment: AlCRN
• Cutting edge: 45°
• Helix angle: 37° / 38°
• 45° corner chamfer

Recommended Materials:

P Steels

• Steels <800 N/mm² – Optimal suitability
• Steels <1,000 N/mm² – Optimal suitability
• Steels <1,200 N/mm² – Optimal suitability
• Steels <1,400 N/mm² – Optimal suitability

H Hard materials

• 50 HRC – Optimal suitability
• 55 HRC – Optimal suitability
• 60 HRC – Alternative suitability
