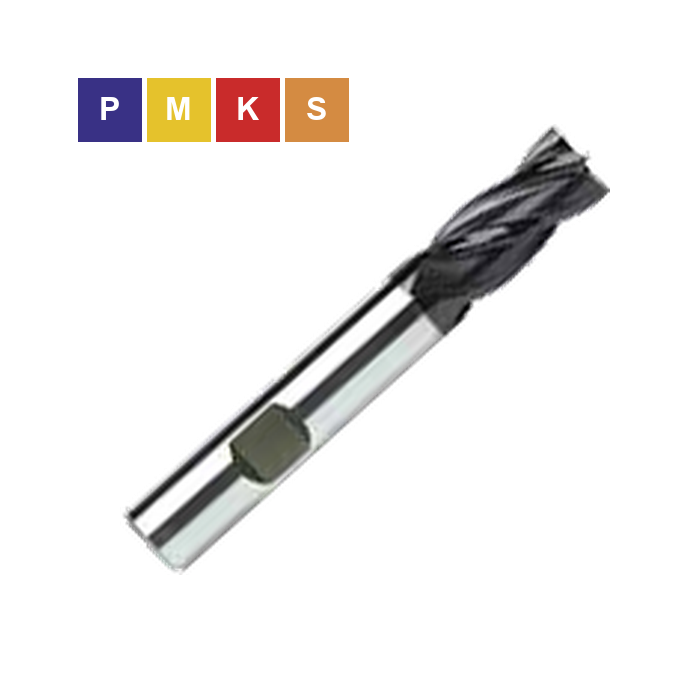

3162 HSSE-PM Square-End End Mill

התחבר כדי לצפות במחיר ובזמינות

3162 HSSE-PM Square-End End Mill

Square-end end mill from HEPYC series 3162. Tool material: Powder-metallurgy high-speed steel (HSSE-PM). Standard / manufacturer designation: DIN 844 N.

Key Features:

  • Tool material: Powder-metallurgy high-speed steel (HSSE-PM)
  • Standard / manufacturer designation: DIN 844 N
  • Number of flutes Z: Z>4
  • Geometry / design: N
  • Helix angle: 30°
  • Coating / treatment: TIALN
  • DIN 1835 B Weldon shank

Recommended Materials:

P Steels

  • Steels <800 N/mm² – Optimal suitability
  • Steels <1,000 N/mm² – Optimal suitability
  • Steels <1,200 N/mm² – Alternative suitability

M Stainless steels

  • Stainless steels <950 N/mm² – Optimal suitability
  • Stainless steels <1,200 N/mm² – Alternative suitability

K Cast iron

  • Cast iron <500 N/mm² – Optimal suitability
  • Cast iron <800 N/mm² – Optimal suitability
  • Cast iron <1,400 N/mm² – Alternative suitability

N Non-ferrous materials

  • Aluminum (Al) – Alternative suitability
  • Copper and copper alloys (Cu) – Alternative suitability
  • Magnesium / zinc (Mg/Zn) – Alternative suitability
  • Plastics – Alternative suitability

S Titanium and heat-resistant alloys

  • Nickel alloys (Ni) – Optimal suitability
  • Titanium (Ti) – Optimal suitability
