HSS Drill Tip of 118º Helix at 18º DIN338H 6.25mm 6.25x63x101xD6.25

HSS Drill Tip of 118º Helix at 18º DIN338H 6.25mm 6.25x63x101xD6.25

$11.70 - $11.70
$11.70
$11.70 - $11.70
$11.70

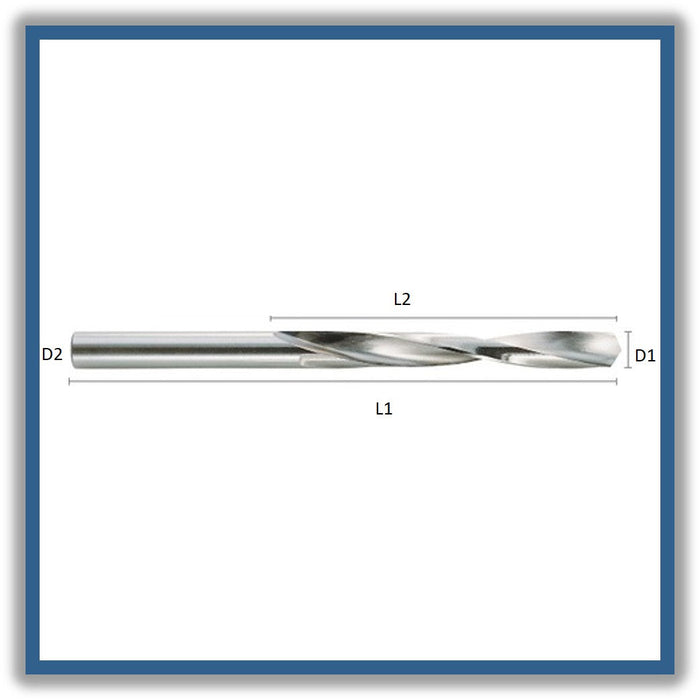

D1 (Cutting diameter): 6.25mm
L2 ( Length of cut): 63mm
L1 (Total length): 101mm
D2 (Shank diameter): 6.25mm
Helical pitch: 18



  • High Speed Steel HSS
  • Short series
  • Tip of 118º
  • Helix at 18º
  • Cylindrical shank

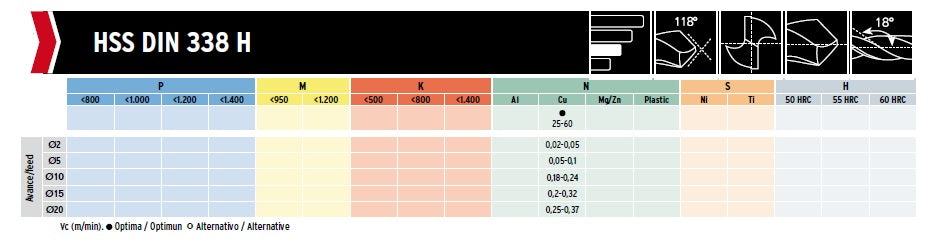

Applications:

Copper, brass, bronze and short chip materials

 * MADE IN SPAIN *

item code: 253022
