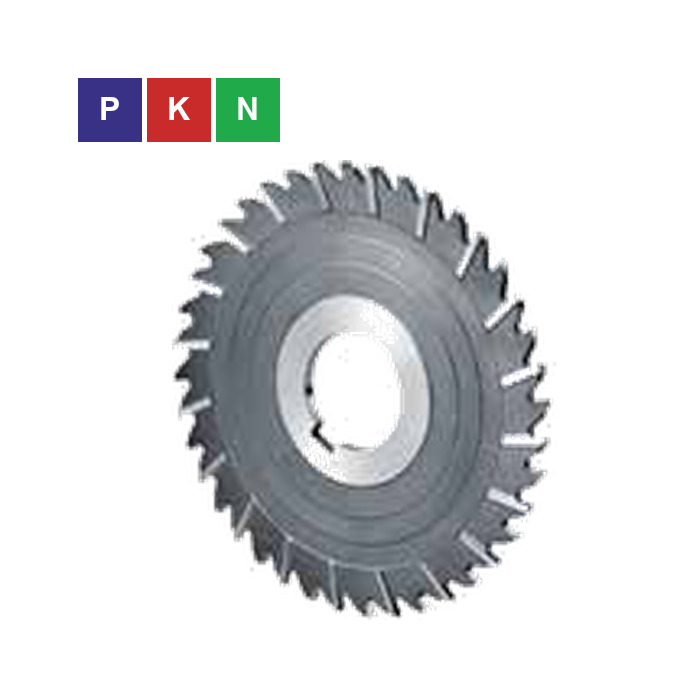

3166 HSSE Slitting Saw

3166 HSSE Slitting Saw

Slitting saw from HEPYC series 3166. Tool material: High-speed steel (HSSE). Standard / manufacturer designation: DIN 1834 A.

Key Features:

• Tool material: High-speed steel (HSSE)
• Standard / manufacturer designation: DIN 1834 A
• Number of flutes Z: 16-40
• Geometry / design: H
• Helix angle: 10°

Recommended Materials:

P Steels

• Steels <800 N/mm² – Optimal suitability
• Steels <1,000 N/mm² – Optimal suitability
• Steels <1,200 N/mm² – Optimal suitability

K Cast iron

• Cast iron <500 N/mm² – Optimal suitability
• Cast iron <800 N/mm² – Optimal suitability

N Non-ferrous materials

• Aluminum (Al) – Optimal suitability
• Copper and copper alloys (Cu) – Optimal suitability
• Magnesium / zinc (Mg/Zn) – Optimal suitability
