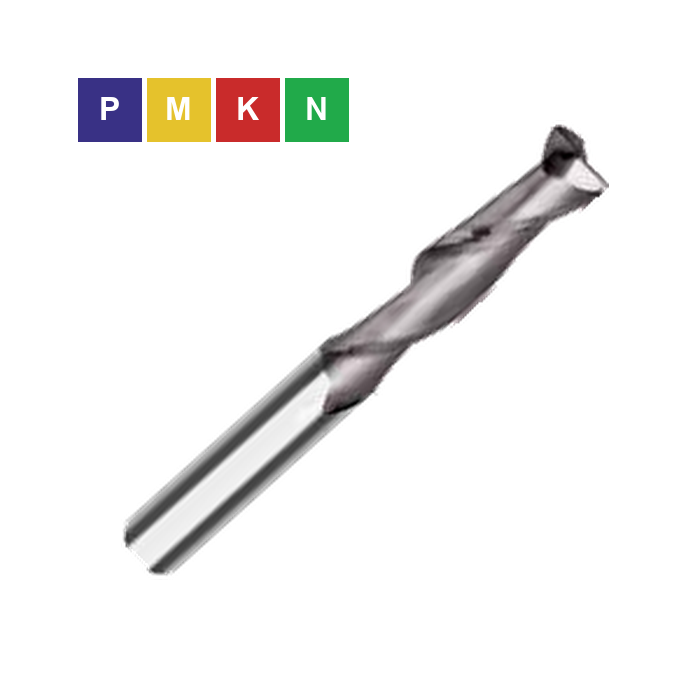

HEPYC 3142 product photo

3142 Solid Carbide Extra-long Square-end End Mill 2FL

Sign in to view price and availability

3142 Solid Carbide Extra-long Square-end End Mill 2FL

Square-end end mill from HEPYC series 3142. Tool material: Carbide (HM-MD).

Key Features:

  • Tool material: Carbide (HM-MD)
  • Number of flutes Z: 2
  • Geometry / design: N
  • Helix angle: 30°
  • Coating / treatment: AlCrN

Recommended Materials:

P Steels

  • Steels <800 N/mm² – Optimal suitability
  • Steels <1,000 N/mm² – Optimal suitability
  • Steels <1,200 N/mm² – Optimal suitability

M Stainless steels

  • Stainless steels <950 N/mm² – Optimal suitability

K Cast iron

  • Cast iron <500 N/mm² – Optimal suitability
  • Cast iron <800 N/mm² – Optimal suitability
  • Cast iron <1,400 N/mm² – Optimal suitability

N Non-ferrous materials

  • Aluminum (Al) – Optimal suitability
  • Copper and copper alloys (Cu) – Optimal suitability
