Solid Carbide Drill DIN 6537 – Series 11780 (3mm - 20mm)

The HEPYC 11780 series features solid carbide (HM) drills manufactured to DIN 6537 standards, designed for high-performance and precision drilling in demanding machining applications. The 140° point geometry provides excellent centering and stable cutting performance, while the 30° helix ensures efficient chip evacuation and smooth cutting.

Manufactured from integral solid carbide (HM) and featuring a TiAlN coating, these drills offer excellent wear resistance, high thermal stability, and extended tool life. With an 8×D drilling depth and internal coolant, the 11780 series is designed for deep-hole drilling and demanding CNC machining applications.

Key Features

  • Solid carbide (HM)

  • DIN 6537 standard

  • 8×D drilling depth

  • 140° point angle

  • 30° helix

  • Cylindrical shank DIN 6535HA

  • TiAlN coating

  • Internal coolant

  • Excellent chip evacuation

  • High wear and heat resistance

  • High rigidity and dimensional stability

  • Long tool life

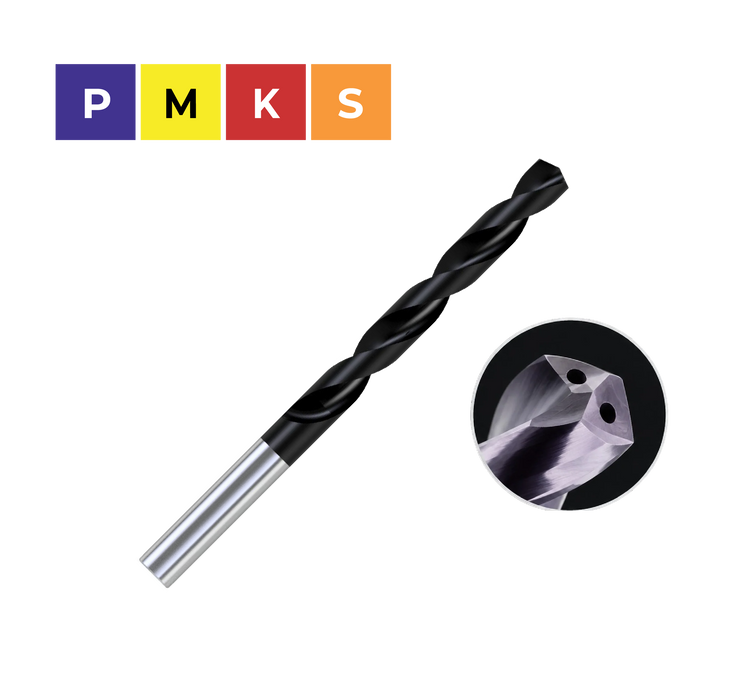

Recommended Materials

🟦 P – Steel (Optimal)

  • Soft magnetic steels

  • Construction steels

  • Case-hardening steels

  • Non-alloyed and alloyed carbon steels

  • High-strength steels up to 55 HRC

🟧 M – Stainless Steel (Alternative)

  • Stainless steels

🟥 K – Cast Iron (Alternative)

  • Cast iron

🟩 N – Non-Ferrous Materials (Alternative)

  • Aluminum

  • Copper

  • Magnesium and zinc alloys

  • Plastics

🟨 S – Titanium & Superalloys (Alternative)

  • Titanium alloys

  • Nickel-based alloys

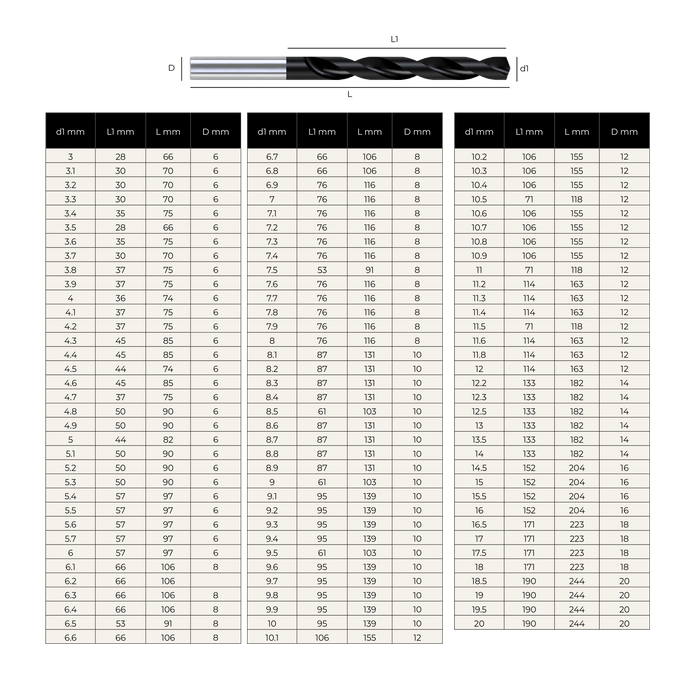

Available Dimensions

  • Diameter: 3.00 – 16.00 mm

  • Drilling depth: 8×D

  • Point angle: 140°

  • Helix angle: 30°

  • Shank: DIN 6535HA

  • Coating: TiAlN

  • Cooling: Internal coolant
