Solid Carbide End Mill 10mm 10R2x22-30x72xD10

Solid Carbide End Mill 10mm 10R2x22-30x72xD10

$96.48 - $96.48
$96.48
$96.48 - $96.48
$96.48

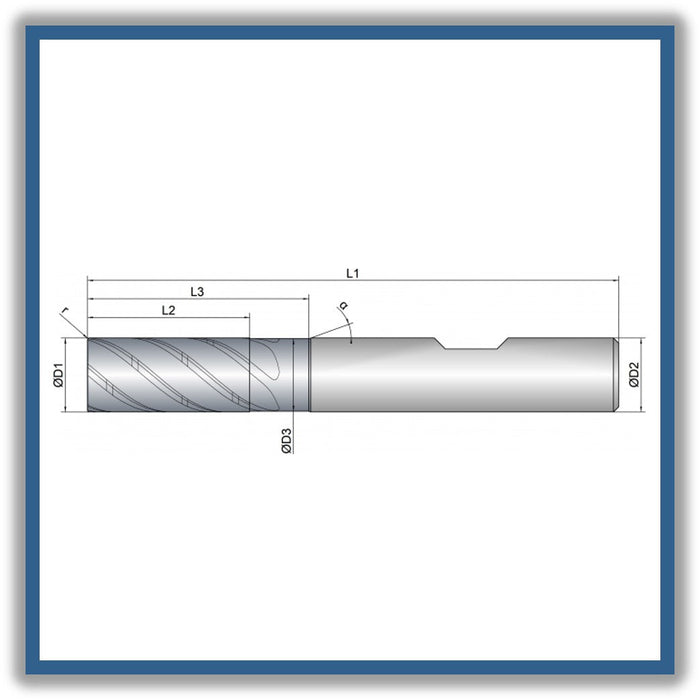

D1 (Cutting diameter): 10mm
D3 (Undercut diameter): 9.8mm
L2 (Length of cut): 22mm
L3 (Length of undercut): 30mm
L1 (Total length): 72mm
D2 (Shank diameter): 10
Z (Number of cutting edges): 5
R Corner radius: 2
Helical pitch: 40
  • Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
  • Adapted chip chambers for trochoidal milling
  • Optimized design of the chip breakers for maximum tool life
  • Ideal chip evacuation, even with high radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion

 * MADE IN GERMANY *



Cooling: Air cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X, Y, Helical

Features: Unequal tooth pitch, Chip breaking, 2XD, Dynamic helical pitch, Center cutting, Corner radius

item code: 324012
