Solid Carbide Corner Rounding 9R8x100xD25

Solid Carbide Corner Rounding 9R8x100xD25

$274.59 - $274.59
$274.59
$274.59 - $274.59
$274.59

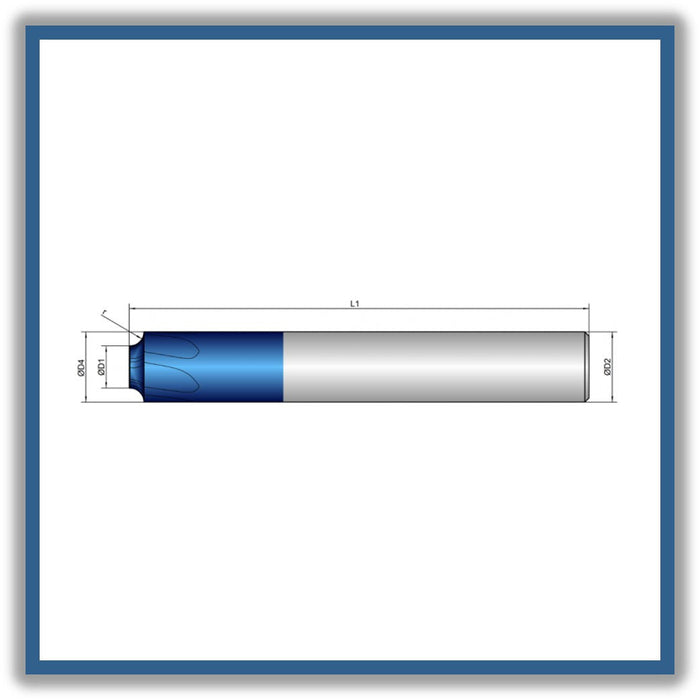

D1 (Cutting diameter): 9mm
L1 (Total length): 100mm
D2 (Shank diameter): 25mm
Z (Number of cutting edges): 6
R (Corner radius): 8


  • Ultrafine carbide grade specially developed for machining hardened steels
  • Defined cutting edge preparation for homogeneous wear
  • For the attachment of radii to components

 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: V1

Coating: AlphaDura Navy

Applications: Corner Rounding

item code: 231017
